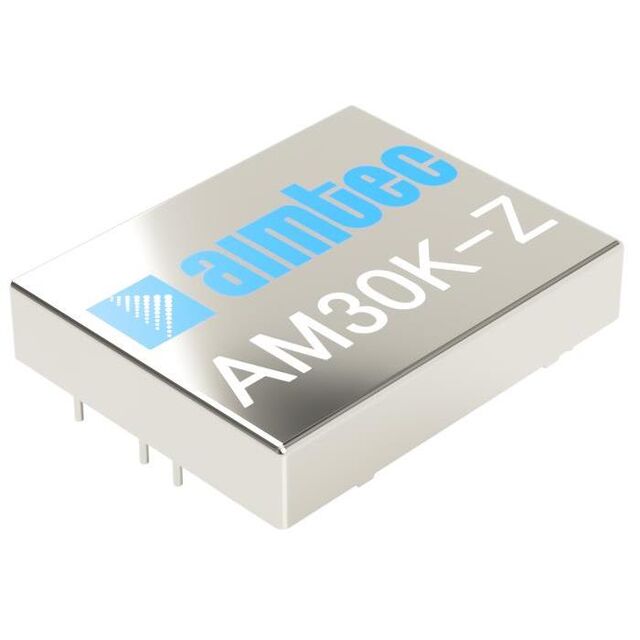

AM30K-2412DZ

Active

aimtec

DC DC CONVERTER +/-12V 30W

Search across all available documentation for this part.

Active

aimtec

DC DC CONVERTER +/-12V 30W

Technical Specifications

Parameters and characteristics for this part

Specification	AM30K-2412DZ

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output (Max)	1.25 A
Efficiency	91 %
Features	Remote On/Off, Adjustable Output
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	30 W
Size / Dimension [x]	50.8 mm
Size / Dimension [y]	40.64 mm
Size / Dimension [z]	0.4 in
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	1.5 kV
Voltage - Output 1 [Max]	12 V
Voltage - Output 1 [Min]	-12 V
Voltage - Output 2	-12 V

Part	Voltage - Isolation	Applications	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Power (Watts)	Voltage - Input (Max) [Max]	Efficiency	Voltage - Output 1	Number of Outputs	Approval Agency	Package / Case	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Type	Mounting Type	Current - Output (Max)	Current - Output (Max)	Features	Voltage - Output 2	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]
aimtec AM30K-2415SZ	1.5 kV	ITE (Commercial)	0.4 in	50.8 mm	40.64 mm	30 W	36 V	91 %	15 V	1	CE	7-DIP Module 6 Leads	2 A	85 °C	-40 °C	18 V	Isolated Module	Through Hole
aimtec AM30K-2415DZ	1.5 kV	ITE (Commercial)	0.4 in	50.8 mm	40.64 mm	30 W	36 V	91 %		2	CE			85 °C	-40 °C	18 V	Isolated Module	Through Hole	1 A	1 A	Adjustable Output Remote On/Off	-15 V	15 V	-15 V
aimtec AM30K-2412DZ	1.5 kV	ITE (Commercial)	0.4 in	50.8 mm	40.64 mm	30 W	36 V	91 %		2	CE			85 °C	-40 °C	18 V	Isolated Module	Through Hole	1.25 A		Adjustable Output Remote On/Off	-12 V	12 V	-12 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 2 Output -12 ~ 12V -12V 1.25A, 1.25A 18V - 36V Input
