6331-0-00-15-00-00-08-0
ActiveMill-Max Manufacturing Corp.

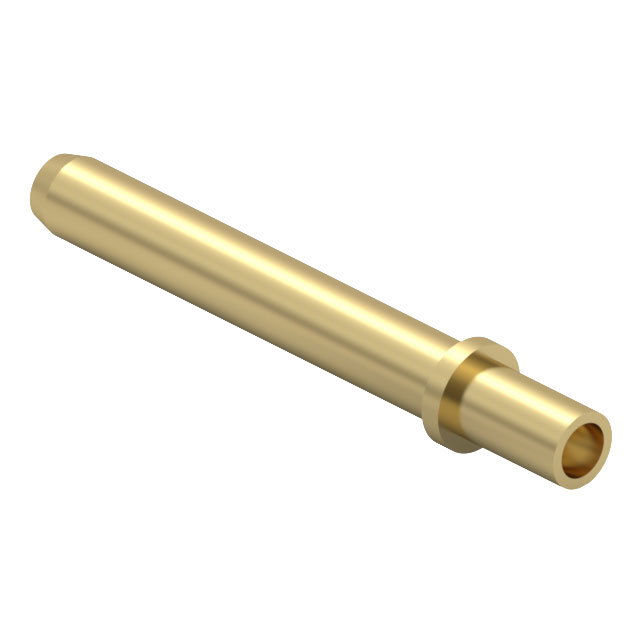

.796" LONG SWAGE PIN
Deep-Dive with AI
Search across all available documentation for this part.
6331-0-00-15-00-00-08-0
ActiveMill-Max Manufacturing Corp.
.796" LONG SWAGE PIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 6331-0-00-15-00-00-08-0 |
|---|---|
| Board Thickness | 3.18 mm |
| Board Thickness | 0.125 in |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter | 3.18 mm |
| Flange Diameter [diameter] | 0.125 in |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 15.62 mm |
| Length - Above Flange [x] | 0.615 in |
| Length - Below Flange [x] | 0.156 in |
| Length - Below Flange [x] | 3.96 mm |
| Length - Overall [x] | 20.22 mm |
| Length - Overall [x] | 0.796 in |
| Mounting Hole Diameter [diameter] | 2.39 mm |
| Mounting Hole Diameter [diameter] | 0.094 " |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 2.36 mm |
| Pin Size - Above Flange [diameter] | 0.093 in |
| Pin Size - Below Flange [diameter] | 0.09 " |
| Pin Size - Below Flange [diameter] | 2.29 mm |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Swage |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.93 | |
| 10 | $ 0.79 | |||
| 25 | $ 0.74 | |||
| 50 | $ 0.71 | |||
| 100 | $ 0.67 | |||
| 250 | $ 0.63 | |||
| 500 | $ 0.60 | |||
| 1000 | $ 0.57 | |||
| 2500 | $ 0.54 | |||
Description
General part information
6331-0 Series
PC Pin Terminal Connector Through Hole Gold 0.093" (2.36mm) Dia
