1810780
ActivePhoenix Contact

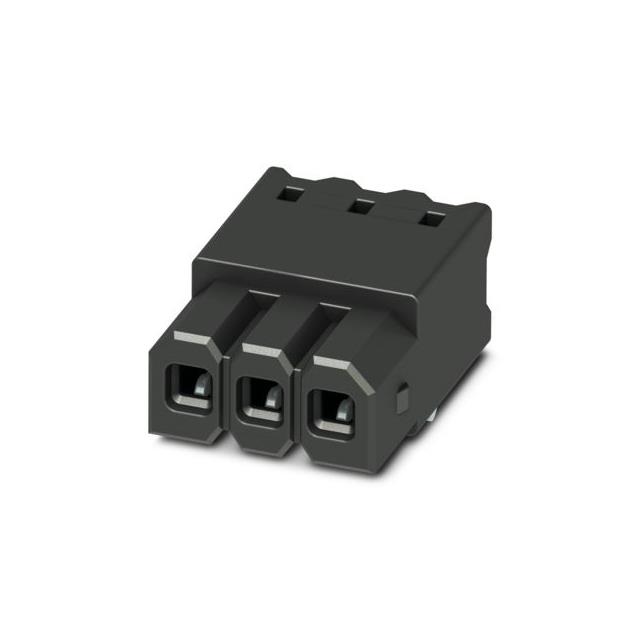

PLUGGABLE TERMINAL BLOCKS PTSM 0 5/ 2-HHI1- 2 5-THR R24
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1810780
ActivePhoenix Contact
PLUGGABLE TERMINAL BLOCKS PTSM 0 5/ 2-HHI1- 2 5-THR R24
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1810780 | PTSM Series |
|---|---|---|
| Color | Black | White, Black |
| Connector Type | - | Poke-In Wire, Receptacle |
| Contact Mating Finish | Tin | Tin |
| Contact Tail Length | 2.1 mm | 2 - 2.1 mm |
| Contact Tail Length | 0.083 " | 0.079 - 0.083 in |
| Current - IEC | 6 A | 6 A |
| Current - UL | 5 A | 5 A |
| Current Rating (Amps) | - | 5 A |
| Features | Board Guide | Solder Retention, Board Guide |
| Header Orientation | 90°, Right Angle | 90°, Right Angle |
| Housing Color | - | White |
| Housing Material | Liquid Crystal Polymer (LCP) | Polyamide (PA), Nylon, Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.197 in | 0.197 in |
| Insulation Height | 5 mm | 5 mm |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Surface Mount, Surface Mount, Right Angle, Through Hole |
| Number of Levels | 1 | 1 |
| Number of Positions | 2 | 2 - 8 |
| Pitch [x] | 0.098 in | 0.098 in |
| Pitch [x] | 2.5 mm | 2.5 mm |
| Positions Per Level | 2 | 2 - 8 |
| Style | - | Board to Cable/Wire |
| Termination | - | Solder |
| Termination Style | Solder | Solder |
| Type | Header, Female Sockets | Header, Male Pins, Shrouded (4 Side), Header, Female Sockets |
| Voltage - IEC | 200 V | 160 - 200 V |
| Voltage - UL | 150 V | 150 V |
| Voltage Rating | - | 150 VDC |
| Wire Gauge | - | 20 AWG |
| Wire Gauge | - | 26 AWG |
PTSM Series
Pluggable Terminal Blocks PTSM 0,5/ 8-2,5-H SMD WH R44
| Part | Features | Header Orientation | Voltage - UL | Termination Style | Pitch [x] | Pitch [x] | Color | Insulation Height | Insulation Height | Contact Tail Length | Contact Tail Length | Housing Material | Number of Positions | Positions Per Level | Material Flammability Rating | Type | Current - UL | Current - IEC | Mounting Type | Number of Levels | Contact Mating Finish | Voltage - IEC | Connector Type | Wire Gauge [Min] | Wire Gauge [Max] | Housing Color | Style | Voltage Rating | Termination | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 1708017 | Solder Retention | 90°, Right Angle | 150 V | Solder | 0.098 in | 2.5 mm | White | 0.197 in | 5 mm | 0.079 in | 2 mm | Polyamide (PA), Nylon | 8 | 8 | UL94 V-0 | Header, Male Pins, Shrouded (4 Side) | 5 A | 6 A | Surface Mount | 1 | Tin | 160 V | ||||||||
Phoenix Contact 1814647 | Solder Retention | 0.098 in | 2.5 mm | Polyamide (PA), Nylon | Surface Mount, Right Angle | Poke-In Wire, Receptacle | 20 AWG | 26 AWG | White | Board to Cable/Wire | 150 VDC | Solder | 5 A | |||||||||||||||||
Phoenix Contact 1810780 | Board Guide | 90°, Right Angle | 150 V | Solder | 0.098 in | 2.5 mm | Black | 0.197 in | 5 mm | 0.083 " | 2.1 mm | Liquid Crystal Polymer (LCP) | 2 | 2 | UL94 V-0 | Header, Female Sockets | 5 A | 6 A | Through Hole | 1 | Tin | 200 V | ||||||||
Phoenix Contact 1814692 | Solder Retention | 0.098 in | 2.5 mm | Polyamide (PA), Nylon | 8 | Surface Mount, Right Angle | Poke-In Wire, Receptacle | 20 AWG | 26 AWG | White | Board to Cable/Wire | 150 VDC | Solder | 5 A | ||||||||||||||||
Phoenix Contact 1810764 | Board Guide, Solder Retention | 90°, Right Angle | 150 V | Solder | 0.098 in | 2.5 mm | Black | 0.197 in | 5 mm | Liquid Crystal Polymer (LCP) | 7 | 7 | UL94 V-0 | Header, Female Sockets | 5 A | 6 A | Surface Mount | 1 | Tin | 160 V | ||||||||||
Phoenix Contact 1810845 | Board Guide | 90°, Right Angle | 150 V | Solder | 0.098 in | 2.5 mm | Black | 0.197 in | 5 mm | 0.083 " | 2.1 mm | Liquid Crystal Polymer (LCP) | 8 | 8 | UL94 V-0 | Header, Female Sockets | 5 A | 6 A | Through Hole | 1 | Tin | 200 V | ||||||||
Phoenix Contact 1814579 | 0.098 in | 2.5 mm | Polyamide (PA), Nylon | Through Hole | Poke-In Wire, Receptacle | 20 AWG | 26 AWG | White | Board to Cable/Wire | 150 VDC | Solder | 5 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
PTSM Series
Pluggable Terminal Blocks PTSM 0,5/ 8-2,5-H SMD WH R44
