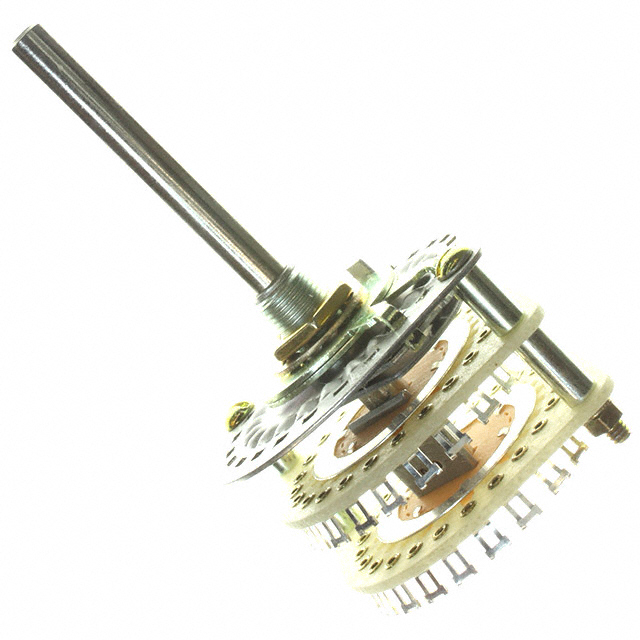

SWITCH ROTARY 2-23POS 250MA 115V

Search across all available documentation for this part.

Active

ELECTROSWITCH

SWITCH ROTARY 2-23POS 250MA 115V

Technical Specifications

Parameters and characteristics for this part

Specification	D9G0223N

Actuator Length [x]	47.63 mm
Actuator Type	Round
Actuator Type [diameter]	6.35 mm
Angle of Throw	15 °
Circuit per Deck	SP23T
Contact Finish	Silver
Contact Material	Brass
Contact Timing	Non-Shorting
Current Rating (Amps)	250 mA, 1.5 A
Depth Behind Panel [z]	26.47 mm
Index Stops	Adjustable
Number of Decks	2
Number of Poles per Deck	1
Number of Positions [Max]	23
Number of Positions [Min]	2
Panel Cutout Dimensions [diameter]	9.78 mm
Termination Style	Solder Lug
Voltage Rating - AC	115 V
Voltage Rating - DC	28 V

Part	Contact Finish	Number of Poles per Deck	Number of Decks	Actuator Length [x]	Contact Timing	Contact Material	Termination Style	Depth Behind Panel [z]	Index Stops	Voltage Rating - DC	Angle of Throw	Panel Cutout Dimensions [diameter]	Number of Positions [Min]	Number of Positions [Max]	Actuator Type	Actuator Type [diameter]	Voltage Rating - AC	Current Rating (Amps)	Circuit per Deck
ELECTROSWITCH D9G0223N	Silver	1	2	47.63 mm	Non-Shorting	Brass	Solder Lug	26.47 mm	Adjustable	28 V	15 °	9.78 mm	2	23	Round	6.35 mm	115 V	1.5 A 250 mA	SP23T
