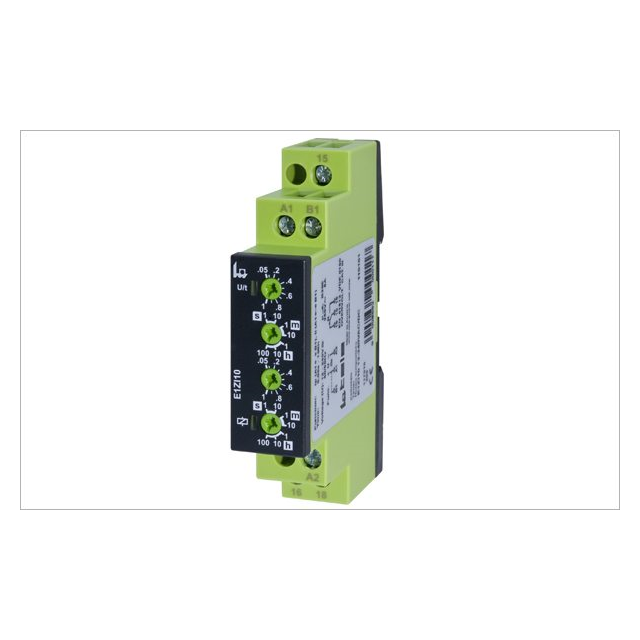

E1ZI10 12-240V AC/DC

Active

TELE Controls Inc

RELAY TIME DELAY 100HR 8A 250V

Search across all available documentation for this part.

Active

TELE Controls Inc

RELAY TIME DELAY 100HR 8A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	E1ZI10 12-240V AC/DC

Contact Rating @ Voltage	250 VAC, 8 A
Delay Time [Max]	100 Hrs
Delay Time [Min]	0.05 Sec
Mounting Type	DIN Rail
Relay Type	Mechanical Relay
Termination Style	Screw Terminal
Timing Adjustment Method	Screwdriver Slot
Timing Initiate Method	Trigger Signal, Input Voltage
Voltage - Supply [Max]	240 VAC
Voltage - Supply [Min]	12 VAC

RELAY TIME DELAY 100HR 8A 250V

Part	Timing Initiate Method	Delay Time [Max]	Delay Time [Min]	Termination Style	Contact Rating @ Voltage	Mounting Type	Relay Type	Timing Adjustment Method	Voltage - Supply [Max]	Voltage - Supply [Min]
TELE Controls Inc E1ZI10 12-240V AC/DC	Input Voltage, Trigger Signal	100 Hrs	0.05 Sec	Screw Terminal	8 A, 250 VAC	DIN Rail	Mechanical Relay	Screwdriver Slot	240 VAC	12 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 100.04

General part information

Interval, On-Delay Time Delay Relay SPDT (1 Form C) 0.05 Sec ~ 100 Hrs Delay 8A @ 250VAC DIN Rail
