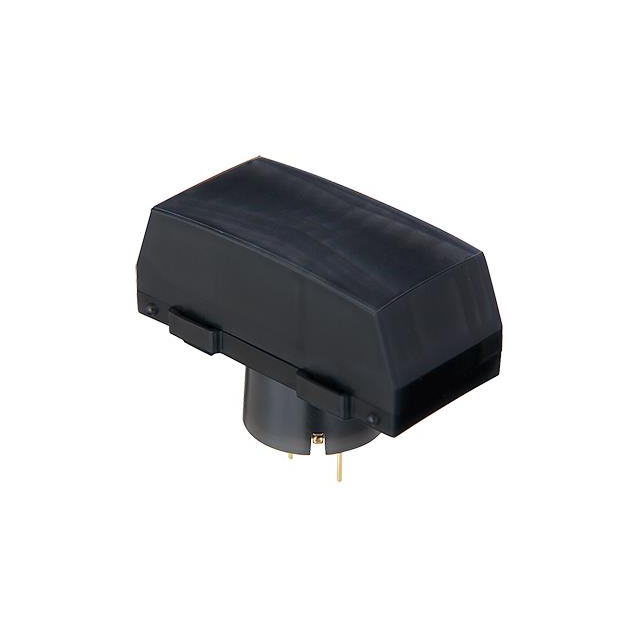

EKMB4305112K

Active

Panasonic Electric Works

SENSOR PIR 6UA DIGITAL BLACK

Search across all available documentation for this part.

Active

Panasonic Electric Works

SENSOR PIR 6UA DIGITAL BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	EKMB4305112K

Features	Horizontally Wide Lens, Black
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Package / Case	Module
Sensing Distance	23 ft
Sensing Distance	7 m
Sensing Distance	276 in
Sensor Type	Pyroelectric, PIR (Passive Infrared), Motion
Trigger Type	Internal
Voltage - Supply [Max]	4 V
Voltage - Supply [Min]	2.3 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Trigger Type	Sensing Distance	Sensing Distance	Sensing Distance	Sensor Type	Features
Panasonic Electric Works EKMB4305113K	-20 C	60 °C	4 V	2.3 V	Module	Internal	23 ft	7 m	276 in	Motion PIR (Passive Infrared) Pyroelectric	Horizontally Wide Lens Pearl White
Panasonic Electric Works EKMB4305111K	-20 C	60 °C	4 V	2.3 V	Module	Internal	23 ft	7 m	276 in	Motion PIR (Passive Infrared) Pyroelectric	Horizontally Wide Lens White
Panasonic Electric Works EKMB4305112K	-20 C	60 °C	4 V	2.3 V	Module	Internal	23 ft	7 m	276 in	Motion PIR (Passive Infrared) Pyroelectric	Black Horizontally Wide Lens

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Sensor Motion, Pyroelectric, PIR (Passive Infrared) 276" (7m) 23' Horizontally Wide Lens, Black Module
