ELSW-F81R3-0LPNM-BR4R6

Active

Everlight Electronics Co Ltd

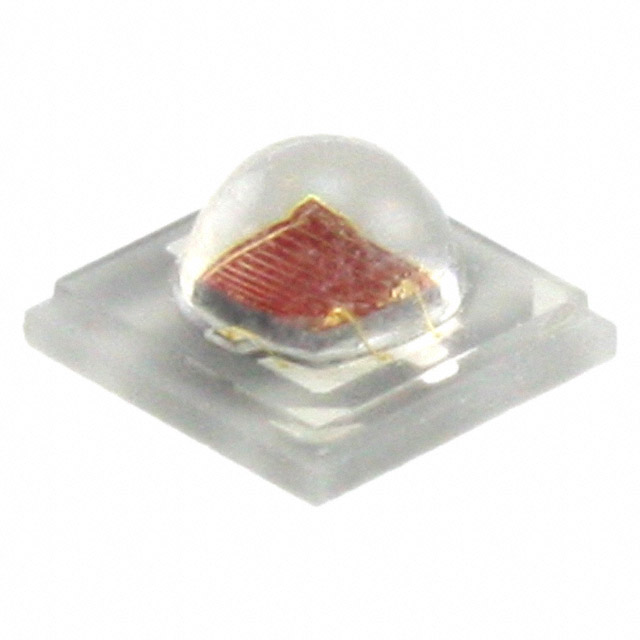

LED SHWO RED 623NM SMD

Search across all available documentation for this part.

Active

Everlight Electronics Co Ltd

LED SHWO RED 623NM SMD

Technical Specifications

Parameters and characteristics for this part

Specification	ELSW-F81R3-0LPNM-BR4R6

Color	Red
Current - Max [Max]	750 mA
Height - Seated (Max) [Max]	0.088 in
Height - Seated (Max) [Max]	2.23 mm
Lumens/Watt @ Current - Test	33 lm/W
Luminous Flux @ Current/Temperature	85 lm
Luminous Flux @ Current/Temperature [Max]	90 lm
Luminous Flux @ Current/Temperature [Min]	80 lm
Mounting Type	Surface Mount
Package / Case	3535 Metric
Package / Case	1414
Size / Dimension [x]	3.5 mm
Size / Dimension [x]	0.138 in
Size / Dimension [y]	3.5 mm
Size / Dimension [y]	0.138 in
Supplier Device Package	SMD
Thermal Resistance of Package [custom]	8 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	2.65 V
Wavelength	623 nm
Wavelength [Max]	630 nm
Wavelength [Min]	615 nm

Part	Supplier Device Package	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature	Viewing Angle	Mounting Type	Current - Max [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Wavelength [Min]	Wavelength	Wavelength [Max]	Thermal Resistance of Package [custom]	Package / Case	Package / Case	Voltage - Forward (Vf) (Typ)	Color	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Lumens/Watt @ Current - Test
Everlight Electronics Co Ltd ELSW-F81R3-0LPNM-BR4R6	SMD	90 lm	80 lm	85 lm	120 °	Surface Mount	750 mA	0.088 in	2.23 mm	615 nm	623 nm	630 nm	8 °C/W	3535 Metric	1414	2.65 V	Red	3.5 mm	3.5 mm	0.138 in	0.138 in	33 lm/W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting Color SHWO Red 623nm (615nm ~ 630nm) 1414 (3535 Metric)
