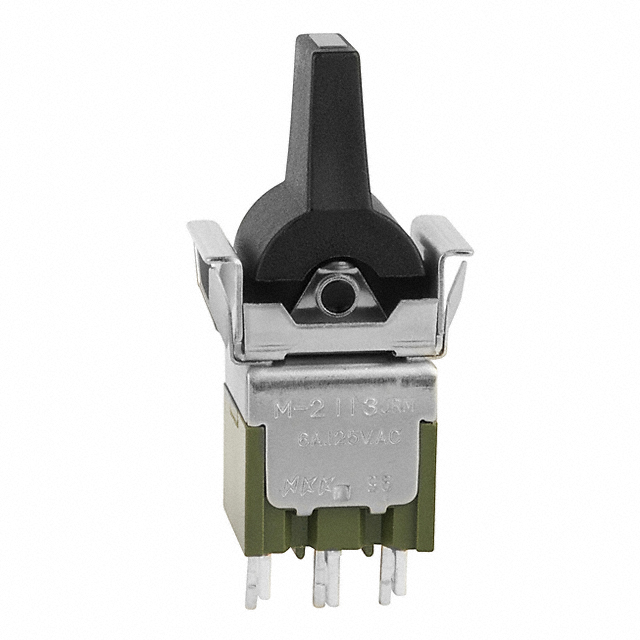

M2113JCFW01
ObsoleteNKK Switches
SWITCH ROCKER SPDT 6A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M2113JCFW01
ObsoleteNKK Switches
SWITCH ROCKER SPDT 6A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M2113JCFW01 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Paddle - Illuminated |
| Approval Agency | CSA, UL |
| Circuit | SPDT |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 3 A, 6 A |
| Electrical Life | 25000 Steps |
| Illumination Type, Color | Green/Red, LED |
| Illumination Voltage (Nominal) | 2 VDC, 2.2 VDC |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [x] | 15.9 mm |
| Panel Cutout Dimensions [y] | 13.1 mm |
| Switch Function | On-Off-On |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.03 | |
| 10 | $ 13.47 | |||
Description
General part information
M2113JC Series
Rocker Switch SPDT 6A (AC), 3A (DC) 125 V Panel Mount, Snap-In
