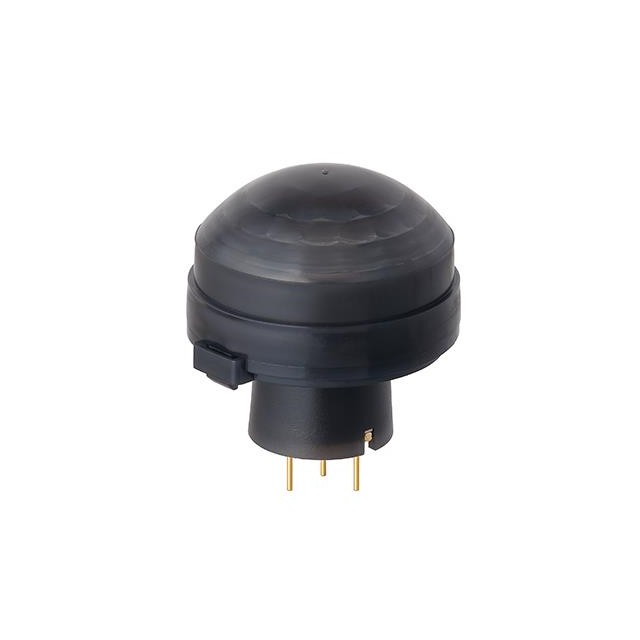

EKMB4306112K

Active

Panasonic Electric Works

SENSOR PIR 6UA DIGITAL BLACK

Search across all available documentation for this part.

Active

Panasonic Electric Works

SENSOR PIR 6UA DIGITAL BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	EKMB4306112K

Features	Black, High Density Lens
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Package / Case	Module
Sensing Distance	17 m
Sensing Distance	55.8 ft
Sensing Distance	669 in
Sensor Type	Pyroelectric, PIR (Passive Infrared), Motion
Trigger Type	Internal
Voltage - Supply [Max]	4 V
Voltage - Supply [Min]	2.3 V

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Trigger Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Sensor Type	Sensing Distance	Sensing Distance	Sensing Distance	Package / Case
Panasonic Electric Works EKMB4306111K	4 V	2.3 V	Internal	High Density Lens White	-20 C	60 °C	Motion PIR (Passive Infrared) Pyroelectric	17 m	55.8 ft	669 in	Module
Panasonic Electric Works EKMB4306112K	4 V	2.3 V	Internal	Black High Density Lens	-20 C	60 °C	Motion PIR (Passive Infrared) Pyroelectric	17 m	55.8 ft	669 in	Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Sensor Motion, Pyroelectric, PIR (Passive Infrared) 669" (17m) 55.8' High Density Lens, Black Module
