Q-2H0100001012i
ActiveAmphenol Custom Cable

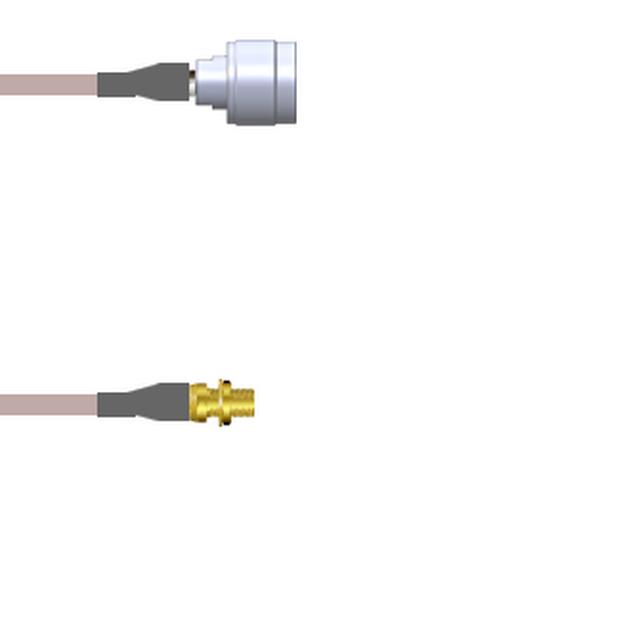

CBL ASSY MCX-NTYPE JACK-PLUG 12"
Deep-Dive with AI
Search across all available documentation for this part.
Q-2H0100001012i
ActiveAmphenol Custom Cable
CBL ASSY MCX-NTYPE JACK-PLUG 12"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-2H0100001012i |
|---|---|
| 1st Connector | MCX Jack |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | N-Type Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | RG-178 |
| Color | Copper |
| Features | Shielded |
| Frequency - Max [Max] | 6000 MHz |
| Length | 12 " |
| Length | 304.8 mm |
| Overall Impedance | 50 Ohms |
| Style | MCX to N-Type |
Q-2H0100 Series
| Part | Features | 1st Connector | 1st Contact Gender | 2nd Connector | Cable Type | 1st Connector Mounting Type | Frequency - Max [Max] | 2nd Contact Gender | Overall Impedance | Length | Length | Color | Style | 1st Connector Mounting Feature | 2nd Connector Mounting Type | Length | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Custom Cable | Shielded | MCX Jack | Female | N-Type Plug | RG-178 | Panel Mount | 6000 MHz | Male | 50 Ohms | 3 in | 76.2 mm | Copper | MCX to N-Type | Bulkhead - Front Side Nut | Free Hanging (In-Line) | |||
Amphenol Custom Cable | Shielded | MCX Jack | Female | N-Type Plug | RG-178 | Panel Mount | 6000 MHz | Male | 50 Ohms | 12 " | 304.8 mm | Copper | MCX to N-Type | Bulkhead - Front Side Nut | Free Hanging (In-Line) | |||
Amphenol Custom Cable | Shielded | MCX Jack | Female | N-Type Plug | RG-178 | Panel Mount | 6000 MHz | Male | 50 Ohms | 6 in | 152.4 mm | Copper | MCX to N-Type | Bulkhead - Front Side Nut | Free Hanging (In-Line) | |||
Amphenol Custom Cable | Shielded | MCX Jack | Female | N-Type Plug | RG-178 | Panel Mount | 6000 MHz | Male | 50 Ohms | 78.7 in | 2 m | Copper | MCX to N-Type | Bulkhead - Front Side Nut | Free Hanging (In-Line) | 6.6 ft | ||
Amphenol Custom Cable | Shielded | MCX Jack | Female | N-Type Plug | RG-178 | Panel Mount | 6000 MHz | Male | 50 Ohms | 84 in | 2.1 m | Copper | MCX to N-Type | Bulkhead - Front Side Nut | Free Hanging (In-Line) | 7 ft | ||
Amphenol Custom Cable | Shielded | MCX Jack | Female | N-Type Plug | RG-178 | Panel Mount | 6000 MHz | Male | 50 Ohms | 108 in | 2.7 m | Copper | MCX to N-Type | Bulkhead - Front Side Nut | Free Hanging (In-Line) | 9 ft | ||
Amphenol Custom Cable | Shielded | MCX Jack | Female | N-Type Plug | RG-178 | Panel Mount | 6000 MHz | Male | 50 Ohms | 5 ' | 1.5 m | Copper | MCX to N-Type | Bulkhead - Front Side Nut | Free Hanging (In-Line) | 5 ft | ||
Amphenol Custom Cable | Shielded | MCX Jack | Female | N-Type Plug | RG-178 | Panel Mount | 6000 MHz | Male | 50 Ohms | 19.69 " | 50 cm | Copper | MCX to N-Type | Bulkhead - Front Side Nut | Free Hanging (In-Line) | |||
Amphenol Custom Cable | Shielded | MCX Jack | Female | N-Type Plug | RG-178 | Panel Mount | 6000 MHz | Male | 50 Ohms | Copper | MCX to N-Type | Bulkhead - Front Side Nut | Free Hanging (In-Line) | 9.843 " | 250 mm | |||
Amphenol Custom Cable | Shielded | MCX Jack | Female | N-Type Plug | RG-178 | Panel Mount | 6000 MHz | Male | 50 Ohms | 9 " | 228.6 mm | Copper | MCX to N-Type | Bulkhead - Front Side Nut | Free Hanging (In-Line) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 112.16 | |
| 25 | $ 110.09 | |||
| 50 | $ 108.02 | |||
| 100 | $ 105.95 | |||
| 250 | $ 103.88 | |||
Description
General part information
Q-2H0100 Series
Cable Assembly Coaxial MCX to N-Type RG-178 12.00" (304.80mm)
