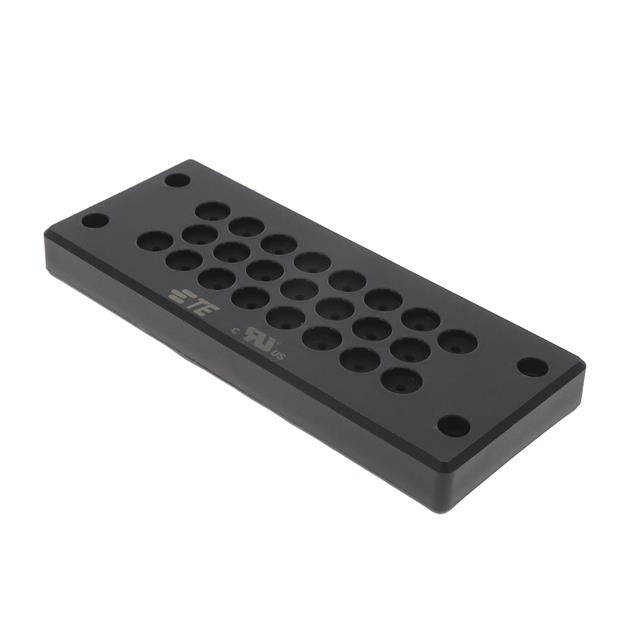

EP-BRM-SZ23-LGR-A

Active

TE Connectivity ENTRELEC

CONNECTOR ACCESSORY

Search across all available documentation for this part.

Active

TE Connectivity ENTRELEC

CONNECTOR ACCESSORY

Technical Specifications

Parameters and characteristics for this part

Specification	EP-BRM-SZ23-LGR-A

Bushing, Grommet Type	Grommet, Entry Plate
Color	Gray
Diameter - Inside [Max] [diameter]	8.5 mm
Diameter - Inside [Max] [diameter]	0.335 in
Diameter - Inside [Min] [diameter]	0.157 "
Diameter - Inside [Min] [diameter]	4 mm
For Use With/Related Products	Wires, Cable
Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-2
Panel Cutout Dimensions [x]	2.362 "
Panel Cutout Dimensions [x]	60 mm
Panel Cutout Dimensions [y]	148 mm
Panel Cutout Dimensions [y]	5.827 "
Panel Thickness [Max]	1.5 mm
Panel Thickness [Max]	0.059 in
Panel Thickness [Min]	0.99 mm
Panel Thickness [Min]	0.039 in

CONNECTOR ACCESSORY

Part	Diameter - Inside [Max] [diameter]	Diameter - Inside [Min] [diameter]	Diameter - Inside [Min] [diameter]	Diameter - Inside [Max] [diameter]	Color	Bushing, Grommet Type	For Use With/Related Products	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [y]	Material	Panel Thickness [Min]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Max]	Material Flammability Rating
TE Connectivity ENTRELEC EP-BRM-SZ23-LGR-A	8.5 mm	0.157 "	4 mm	0.335 in	Gray	Grommet, Entry Plate	Cable, Wires	2.362 "	60 mm	148 mm	5.827 "	Polyamide (PA), Nylon	0.99 mm	0.039 in	1.5 mm	0.059 in	UL94 V-2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rectangular - 2.362" L x 5.827" W (60.00mm x 148.00mm) Grommet, Entry Plate 0.157" ~ 0.335" (4.00mm ~ 8.50mm) Gray
