796291-1

Active

TE Connectivity AMP Connectors

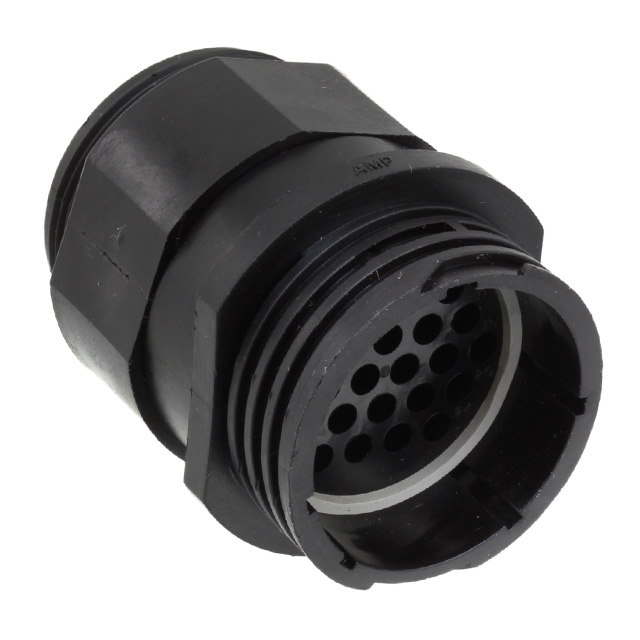

CONN RCPT HSNG MALE 24POS INLINE

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSNG MALE 24POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	796291-1

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Features	Backshell
Housing Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	24
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Shell Size - Insert [Max]	24
Shell Size - Insert [Min]	23
Shielding	Unshielded
Type	For Male Pins

CONN RCPT HSNG MALE 24POS INLINE

Part	Connector Type	Ingress Protection	Features	Type	Contact Shape	Contact Type	Shielding	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Size	Orientation	Insert Material	Material Flammability Rating	Housing Color	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Note	Number of Positions
TE Connectivity AMP Connectors 796291-1	Receptacle Housing	IP67 - Dust Tight, Waterproof	Backshell	For Male Pins	Circular	Crimp	Unshielded	Free Hanging (In-Line)	105 ░C	-55 °C	16	Keyed	Thermoplastic	UL94 V-0	Black	24	23	Contacts Not Included	24

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

24 Position Circular Connector Receptacle Housing Free Hanging (In-Line) Backshell
