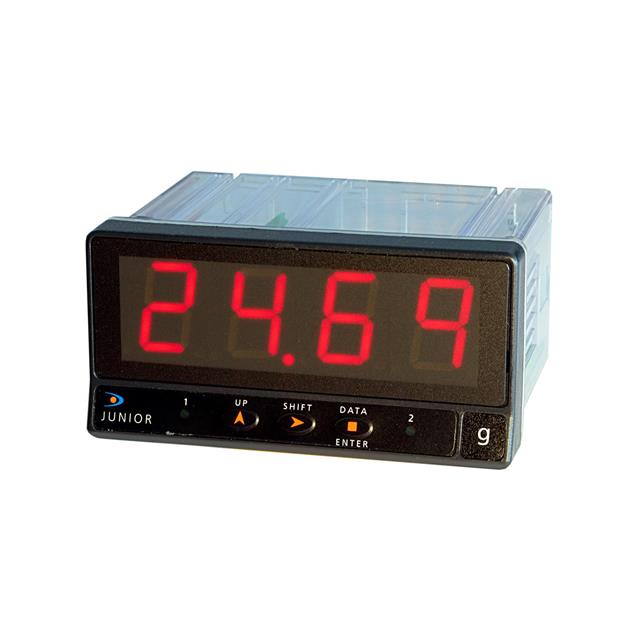

JR20-P/2RE

Active

DITEL

PROCESS/TEMPERATURE METER, 1/8

Search across all available documentation for this part.

Active

DITEL

PROCESS/TEMPERATURE METER, 1/8

Technical Specifications

Parameters and characteristics for this part

Specification	JR20-P/2RE

Display Characters - Height [custom]	0.787 in
Display Characters - Height [custom]	20 mm
Display Type	LED - Red Characters
Features	Excitation Supply
Ingress Protection	IP65 - Dust Tight, Water Resistant
Measuring Range	Multiple
Measuring Type	Process, Resistance, Thermocouple
Number of Characters Per Row	4
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Output Type	Relay (2)
Panel Cutout Dimensions [x]	92 mm
Panel Cutout Dimensions [y]	45 mm
Termination Style	Connector
Type	Multifunction Meter
Voltage - Supply [Max]	265 VDC, 265 VAC
Voltage - Supply [Min]	11 V, 20 VAC

PROCESS/TEMPERATURE METER, 1/8

Part	Measuring Type	Type	Display Type	Features	Output Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Display Characters - Height [custom]	Display Characters - Height [custom]	Measuring Range	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Termination Style	Ingress Protection	Number of Characters Per Row	Operating Temperature [Min]	Operating Temperature [Max]
DITEL JR20-P/2RE	Process, Resistance, Thermocouple	Multifunction Meter	LED - Red Characters	Excitation Supply	Relay (2)	11 V, 20 VAC	265 VDC, 265 VAC	0.787 in	20 mm	Multiple	92 mm	45 mm	Connector	IP65 - Dust Tight, Water Resistant	4	-10 °C	60 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Retail Package	1	$ 281.00

General part information

Multifunction Meter LED - Red Characters Display Panel Mount
