STTH1202DI

Active

STMicroelectronics

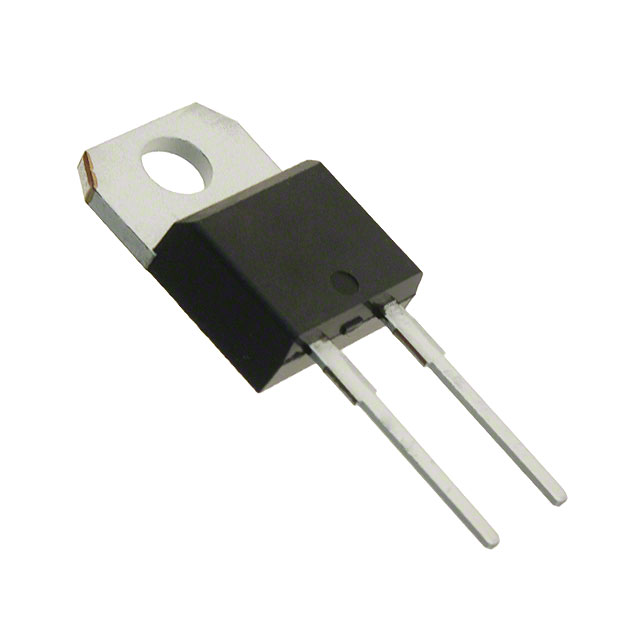

DIODE GP 200V 12A TO220AC INS

Search across all available documentation for this part.

Active

STMicroelectronics

DIODE GP 200V 12A TO220AC INS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	STTH1202DI	STTH120 Series

Current - Average Rectified (Io)	12 A	12 A
Current - Average Rectified (Io) (per Diode)	-	60 A
Current - Reverse Leakage @ Vr	10 µA	10 - 50 µA
Diode Configuration	-	2 Independent
Mounting Type	Through Hole	Chassis Mount, Through Hole
Operating Temperature - Junction	-	150 °C
Operating Temperature - Junction [Max]	175 °C	175 °C
Package / Case	-	ISOTOP, TO-220-2 Full Pack
Reverse Recovery Time (trr)	35 ns	35 - 90 ns
Speed	200 mA, 500 ns	200 - 500 mA
Supplier Device Package	TO-220AC ins	ISOTOP®, TO-220AC ins
Technology	Standard	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	200 V	200 - 400 V
Voltage - Forward (Vf) (Max) @ If	-	1.05 - 1.2 V
Voltage - Forward (Vf) (Max) @ If [Max]	1.1 V	1.1 V

DIODE MODULE GP 400V 60A ISOTOP

Part	Current - Reverse Leakage @ Vr	Operating Temperature - Junction	Diode Configuration	Technology	Supplier Device Package	Mounting Type	Package / Case	Current - Average Rectified (Io) (per Diode)	Voltage - Forward (Vf) (Max) @ If	Voltage - DC Reverse (Vr) (Max) [Max]	Reverse Recovery Time (trr)	Speed	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If [Max]	Operating Temperature - Junction [Max]
STMicroelectronics STTH12004TV1	50 µA	150 °C	2 Independent	Standard	ISOTOP®	Chassis Mount	ISOTOP	60 A	1.2 V	400 V	90 ns	200 mA, 500 ns
STMicroelectronics STTH1202FP	10 µA			Standard		Through Hole	TO-220-2 Full Pack			200 V	35 ns	200 mA, 500 ns	12 A	1.1 V	175 °C
STMicroelectronics STTH1202DI	10 µA			Standard	TO-220AC ins	Through Hole				200 V	35 ns	200 mA, 500 ns	12 A	1.1 V	175 °C
STMicroelectronics STTH12002TV1	50 µA	150 °C	2 Independent	Standard	ISOTOP®	Chassis Mount	ISOTOP	60 A	1.05 V	200 V	43 ns	200 mA, 500 ns
