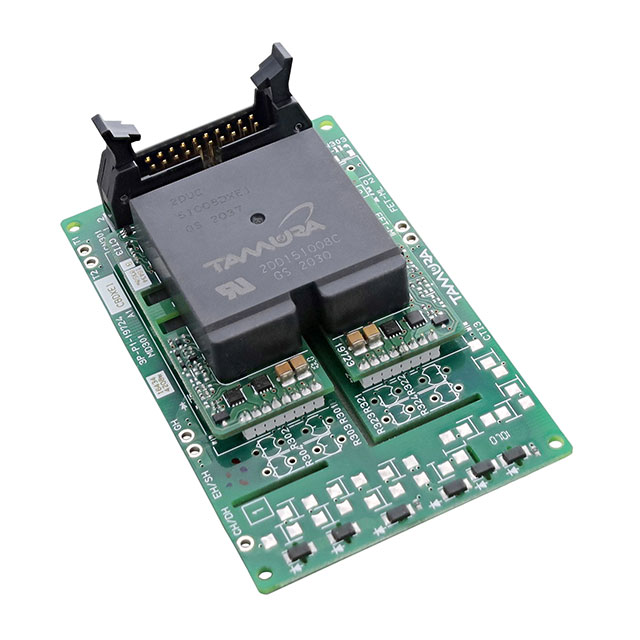

2DUC51008DXE1

Active

Tamura

IC GATE DRVR HALF-BRIDGE MODULE

Search across all available documentation for this part.

Active

Tamura

IC GATE DRVR HALF-BRIDGE MODULE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 55.65

General part information

Half-Bridge Gate Driver IC Non-Inverting Module

Technical documentation and resources

No documents available

Specification	2DUC51008DXE1	2DUC51008 Series

Channel Type	Synchronous	Synchronous
Driven Configuration	Half-Bridge	Half-Bridge
Gate Type	IGBT	IGBT
High Side Voltage - Max (Bootstrap)	-	1200 V
Input Type	Non-Inverting	Non-Inverting
Mounting Type	Chassis Mount	Chassis Mount
Number of Drivers	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Module	Module
Supplier Device Package	Module	Module
Voltage - Supply [Max]	28 V	28 V
Voltage - Supply [Min]	13 V	13 V

Part	Driven Configuration	Voltage - Supply [Max]	Voltage - Supply [Min]	High Side Voltage - Max (Bootstrap) [Max]	Mounting Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Channel Type	Number of Drivers	Gate Type	Input Type
Tamura 2DUC51008CXE1	Half-Bridge	28 V	13 V	1200 V	Chassis Mount	Module	85 °C	-40 °C	Module	Synchronous	2	IGBT	Non-Inverting
Tamura 2DUC51008DXE1	Half-Bridge	28 V	13 V		Chassis Mount	Module	85 °C	-40 °C	Module	Synchronous	2	IGBT	Non-Inverting
