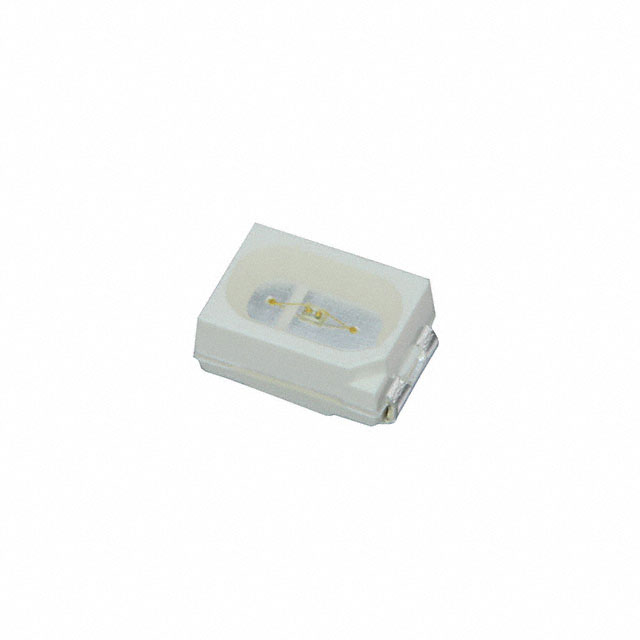

CLM3A Series

Part	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Package / Case	Lens Transparency	Package Name	Configuration	Size / Dimension Width	Size / Dimension Length	Color	Lens Color	Wavelength - Dominant	Current - Test	Height (Max)	Mounting Type	Lens Style	Wavelength - Dominant (Color Temperature)	Viewing Angle
CreeLED, Inc. CLM3A-BKW-CTAUA453	3.4 V	420 mcd	2-SMD J-Lead	Clear	2-PLCC	Standard	2 mm	2.7 mm	Blue	Colorless	470 nm	20 mA	1.4 mm	Surface Mount	Flat Top Rectangle
CreeLED, Inc. CLM3A-WKW-CWAXA153	3.2 V	1680 mcd	2-SMD J-Lead	Diffused	2-PLCC	Standard	2 mm	2.7 mm	Cool White	Yellow		20 mA	1.4 mm	Surface Mount	Flat Top Rectangle	5500 K	120 °
CreeLED, Inc. CLM3A-GKW-CVAWA793	3.4 V	1055 mcd	2-SMD J-Lead	Clear	2-PLCC	Standard	2 mm	2.7 mm	Green	Colorless	527 nm	20 mA	1.4 mm	Surface Mount	Flat Top Rectangle
CreeLED, Inc. CLM3A-MKW-CWAXA233	3.2 V	1680 mcd	2-SMD J-Lead	Diffused	2-PLCC	Standard	2 mm	2.7 mm	Warm White	Yellow		20 mA	1.4 mm	Surface Mount	Flat Top Rectangle	3200 K	120 °
CreeLED, Inc. CLM3A-BKW-CTBUB453	3.4 V	532.5 mcd	2-SMD J-Lead	Clear	2-PLCC	Standard	2 mm	2.7 mm	Blue	Colorless	470 nm	20 mA	1.4 mm	Surface Mount	Flat Top Rectangle
CreeLED, Inc. CLM3A-WKW-CWAXA123			2-SMD J-Lead		2-PLCC		2 mm	2.7 mm					1.4 mm	Surface Mount
CreeLED, Inc. CLM3A-MKW-CVBXA233	3.2 V	1570 mcd	2-SMD J-Lead	Diffused	2-PLCC	Standard	2 mm	2.7 mm	Warm White	Yellow		20 mA	1.4 mm	Surface Mount	Flat Top Rectangle	3200 K	120 °
CreeLED, Inc. CLM3A-WKW-CWAXA133			2-SMD J-Lead		2-PLCC		2 mm	2.7 mm					1.4 mm	Surface Mount
CreeLED, Inc. CLM3A-WKW-CWAWBJQ3			2-SMD J-Lead		2-PLCC		2 mm	2.7 mm					1.4 mm	Surface Mount
