3399-6000

Active

3M (TC)

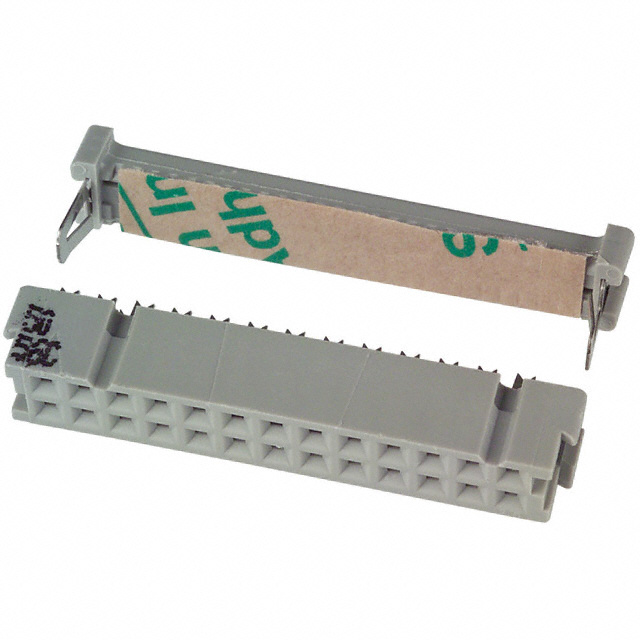

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2.54 MM, 2 ROW, 26 CONTACTS, CABLE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Catalog Datasheet

3399-6000

Active

3M (TC)

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2.54 MM, 2 ROW, 26 CONTACTS, CABLE MOUNT

Deep-Dive with AI

DocumentsInterconnect Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3399-6000

Cable Termination	IDC
Color	Gray
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Type	Female Socket
Features	Feed Through
Mounting Type	Free Hanging (In-Line)
Number of Positions	26
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Wire Type	Ribbon Cable

3399 Series

Part	Connector Type	Cable Termination	Contact Type	Mounting Type	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Wire Gauge [Min]	Wire Gauge [Max]	Wire Gauge	Features	Row Spacing [x]	Row Spacing	Wire Type	Color	Pitch [x]	Pitch [x]	Contact Finish
3M (TC) 3399-H600	Receptacle	IDC	Female Socket	Free Hanging (In-Line)	26	0.76 Ám	30 Áin	2	26 AWG	28 AWG	Solid Stranded	Feed Through Polarizing Key	0.1 in	2.54 mm	Ribbon Cable	Gray	2.54 mm	0.1 in	Gold
3M (TC) 3399-J000	Receptacle	IDC	Female Socket	Free Hanging (In-Line)	26	0.76 Ám	30 Áin	2	26 AWG	28 AWG	Solid Stranded	Closed End	0.1 in	2.54 mm	Ribbon Cable	Gray	2.54 mm	0.1 in	Gold
3M (TC) 3399-6026	Receptacle	IDC	Female Socket	Free Hanging (In-Line)	26	0.76 Ám	30 Áin	2				Feed Through Strain Relief	0.1 in	2.54 mm	Ribbon Cable	Gray	2.54 mm	0.1 in	Gold
3M (TC) 3399-6626	Receptacle	IDC	Female Socket	Free Hanging (In-Line)	26	0.76 Ám	30 Áin	2				Feed Through Polarizing Key Strain Relief	0.1 in	2.54 mm	Ribbon Cable	Gray	2.54 mm	0.1 in	Gold
3M (TC) 3399-7026	Receptacle	IDC	Female Socket	Free Hanging (In-Line)	26	0.76 Ám	30 Áin	2				Closed End Strain Relief	0.1 in	2.54 mm	Ribbon Cable	Gray	2.54 mm	0.1 in	Gold
3M (TC) 3399-G626	Receptacle	IDC	Female Socket	Free Hanging (In-Line)	26			2	26 AWG	28 AWG	Solid Stranded		0.1 in	2.54 mm	Ribbon Cable	Gray	2.54 mm	0.1 in
3M (TC) 3399-6000	Receptacle	IDC	Female Socket	Free Hanging (In-Line)	26	0.76 Ám	30 Áin	2				Feed Through	0.1 in	2.54 mm	Ribbon Cable	Gray	2.54 mm	0.1 in	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.26
		10	$ 5.68
		25	$ 5.38
		50	$ 5.26
		100	$ 5.01
		300	$ 4.38
		600	$ 4.26
		1200	$ 3.63
		2700	$ 3.38
Newark	Each	250	$ 4.29
		500	$ 4.16
		1000	$ 3.54

Description

General part information

3399 Series

The 3000 series Four-wall Header with copper alloy contacts and a glass-filled polycyclohexylenedimethylene terephthalate insulator. The high temperature insulator suitable for no lead soldering operations. It is suitable for reflow soldering using paste in hole techniques.
