EEG.1K.306.CLV
ActiveLEMO

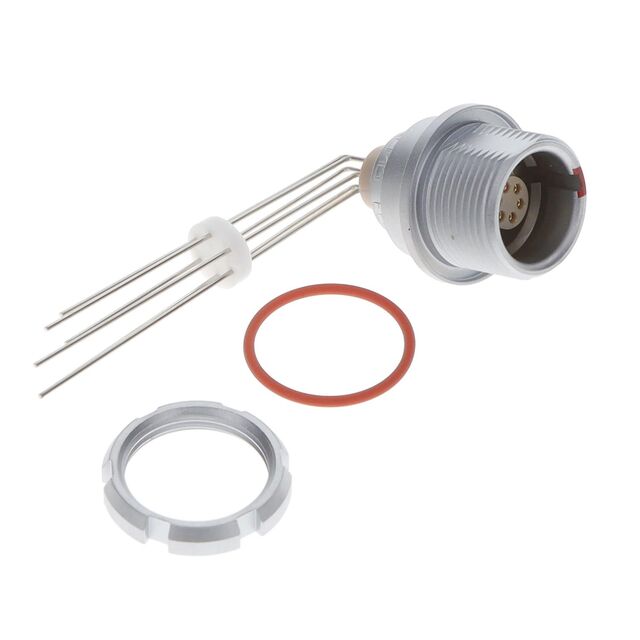

CONN RCPT FMALE 6POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EEG.1K.306.CLV
ActiveLEMO
CONN RCPT FMALE 6POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EEG.1K.306.CLV | EEG.1K Series |
|---|---|---|
| Color | Silver | Silver, Black |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 59 Áin | 59 Áin |
| Contact Finish Thickness - Mating | 1.5 Ám | 1.5 Ám |
| Contact Material | Bronze | Bronze |
| Current Rating (Amps) | 6 A | 1.5 - 15 A |
| Fastening Type | Push-Pull | Push-Pull |
| Ingress Protection | IP66/IP68 | IP66/IP68 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Right Angle, Panel Mount | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 6 | 2 - 14 |
| Number of Positions | - | 16 |
| Operating Temperature [Max] | 200 °C | 200 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | G | G |
| Primary Material | Metal | Metal |
| Shell Finish | Chrome | Chrome |
| Shell Material | Brass | Brass |
| Shell Size - Insert | 306 | 302 - 316 |
| Shielding | Shielded | Shielded |
| Termination | Solder | Solder, Crimp |
EEG.1K Series
CIRCULAR CONNECTORS & CABLE CONNECTORS ROHS
| Part | Current Rating (Amps) | Fastening Type | Orientation | Contact Finish - Mating | Shielding | Material Flammability Rating | Ingress Protection | Shell Material | Mounting Type | Insert Material | Termination | Primary Material | Shell Finish | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Connector Type | Color | Shell Size - Insert | Number of Positions | Mounting Feature | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO EEG.1K.308.CLV | 5 A | Push-Pull | G | Gold | Shielded | UL94 V-0 | IP66/IP68 | Brass | Panel Mount, Right Angle, Through Hole | Polyetheretherketone (PEEK) | Solder | Metal | Chrome | -55 °C | 200 °C | Bronze | Receptacle, Female Sockets | Silver | 308 | 8 | Bulkhead - Front Side Nut | 59 Áin | 1.5 Ám | |
LEMO EEG.1K.316.CLN | 1.5 A | Push-Pull | G | Gold | Shielded | UL94 V-0 | IP66/IP68 | Brass | Panel Mount, Through Hole | Polyetheretherketone (PEEK) | Solder | Metal | Chrome | -55 °C | 200 °C | Bronze | Receptacle, Female Sockets | Silver | 316 | Bulkhead - Front Side Nut | 59 Áin | 1.5 Ám | 16 | |
LEMO EEG.1K.305.CLL | 9 A | Push-Pull | G | Gold | Shielded | UL94 V-0 | IP66/IP68 | Brass | Polyetheretherketone (PEEK) | Metal | Chrome | -55 °C | 200 °C | Bronze | Receptacle, Female Sockets | Silver | 305 | Bulkhead - Front Side Nut | 59 Áin | 1.5 Ám | ||||
LEMO EEG.1K.304.CYM | 10 A | Push-Pull | G | Gold | Shielded | UL94 V-0 | IP66/IP68 | Brass | Polyetheretherketone (PEEK) | Crimp | Metal | Chrome | -55 °C | 200 °C | Bronze | Receptacle, Female Sockets | Silver | 304 | 4 | Bulkhead - Front Side Nut | 59 Áin | 1.5 Ám | ||
LEMO EEG.1K.304.CLL | 10 A | Push-Pull | G | Gold | Shielded | UL94 V-0 | IP66/IP68 | Brass | Polyetheretherketone (PEEK) | Metal | Chrome | -55 °C | 200 °C | Bronze | Receptacle, Female Sockets | Silver | 304 | 4 | Bulkhead - Front Side Nut | 59 Áin | 1.5 Ám | |||
LEMO EEG.1K.305.CLV | 6 A | Push-Pull | G | Gold | Shielded | UL94 V-0 | IP66/IP68 | Brass | Panel Mount, Right Angle, Through Hole | Polyetheretherketone (PEEK) | Solder | Metal | Chrome | -55 °C | 200 °C | Bronze | Receptacle, Female Sockets | Silver | 305 | Bulkhead - Front Side Nut | 59 Áin | 1.5 Ám | ||
LEMO EEG.1K.308.CLL | 5 A | Push-Pull | G | Gold | Shielded | UL94 V-0 | IP66/IP68 | Brass | Polyetheretherketone (PEEK) | Metal | Chrome | -55 °C | 200 °C | Bronze | Receptacle, Female Sockets | Silver | 308 | 8 | Bulkhead - Front Side Nut | 59 Áin | 1.5 Ám | |||
LEMO EEG.1K.302.CLL | 15 A | Push-Pull | G | Gold | Shielded | UL94 V-0 | IP66/IP68 | Brass | Polyetheretherketone (PEEK) | Metal | Chrome | -55 °C | 200 °C | Bronze | Receptacle, Female Sockets | Silver | 302 | 2 | Bulkhead - Front Side Nut | 59 Áin | 1.5 Ám | |||
LEMO EEG.1K.308.CLN | 5 A | Push-Pull | G | Gold | Shielded | UL94 V-0 | IP66/IP68 | Brass | Panel Mount, Through Hole | Polyetheretherketone (PEEK) | Solder | Metal | Chrome | -55 °C | 200 °C | Bronze | Receptacle, Female Sockets | Silver | 308 | 8 | Bulkhead - Front Side Nut | 59 Áin | 1.5 Ám | |
LEMO EEG.1K.302.CLN | 15 A | Push-Pull | G | Gold | Shielded | UL94 V-0 | IP66/IP68 | Brass | Panel Mount, Through Hole | Polyetheretherketone (PEEK) | Solder | Metal | Chrome | -55 °C | 200 °C | Bronze | Receptacle, Female Sockets | Silver | 302 | 2 | Bulkhead - Front Side Nut | 59 Áin | 1.5 Ám |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 63.34 | |
| 10 | $ 53.84 | |||
| 25 | $ 50.47 | |||
| 50 | $ 48.06 | |||
| 100 | $ 45.77 | |||
Description
General part information
EEG.1K Series
6 Position Circular Connector Receptacle, Female Sockets Solder
