1241.6624.1123000

Active

SCHURTER Inc.

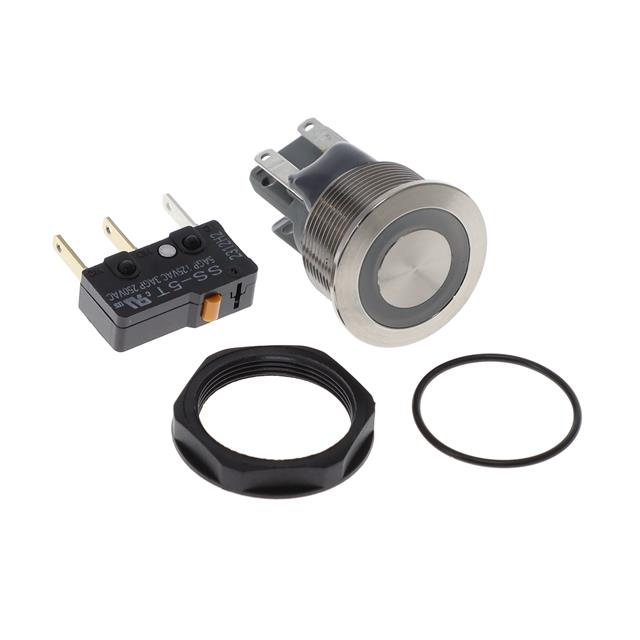

SWITCH PUSHBUTTON SPDT 5A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1241.6624.1123000

Active

SCHURTER Inc.

SWITCH PUSHBUTTON SPDT 5A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1241.6624.1123000	1241.6624 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Flush, Button, Round	Flush, Button, Round
Circuit	SPDT	SPDT
Color - Actuator/Cap	Silver	Silver
Current Rating (Amps)	5 A	5 - 100 A
Electrical Life	200000 Cycles	50000 - 200000 Cycles
Illumination Type, Color	LED, Yellow	LED, Green, Red, Blue, Yellow
Illumination Voltage (Nominal)	24 V	24 V
Ingress Protection	IP40	IP40, IP67 - Dust Tight, Waterproof
Mechanical Life	1500000 Cycles	1500000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	19.1 mm	19.1 mm
Switch Function	On-Mom	On-Mom
Termination Style	Quick Connect - 0.110" (2.8mm)	Quick Connect - 0.110" (2.8mm)
Type	Anti-Vandal, Illuminated	Anti-Vandal, Illuminated
Voltage Rating - AC	125 V	125 - 250 V
Voltage Rating - DC	-	30 V

1241.6624 Series

SWITCH PUSHBUTTON SPDT 5A 125V

Part	Current Rating (Amps)	Mounting Type	Ingress Protection	Circuit	Actuator Type	Illumination Voltage (Nominal)	Mechanical Life	Panel Cutout Dimensions [diameter]	Actuator Marking	Switch Function	Type	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Illumination Type, Color	Color - Actuator/Cap	Electrical Life	Voltage Rating - AC	Voltage Rating - DC
SCHURTER Inc. 1241.6624.1122000	5 A	Panel Mount, Front	IP40	SPDT	Button, Flush, Round	24 V	1500000 Cycles	19.1 mm	No Marking	On-Mom	Anti-Vandal, Illuminated	Quick Connect - 0.110" (2.8mm)	-25 °C	85 °C	Green, LED	Silver	200000 Cycles	125 V
SCHURTER Inc. 1241.6624.1181000	5 A	Panel Mount, Front	IP67 - Dust Tight, Waterproof	SPDT	Button, Flush, Round	24 V	1500000 Cycles	19.1 mm	No Marking	On-Mom	Anti-Vandal, Illuminated	Quick Connect - 0.110" (2.8mm)	-25 °C	85 °C	LED, Red	Silver	50000 Cycles	250 V
SCHURTER Inc. 1241.6624.1111000	100 mA	Panel Mount, Front	IP40	SPDT	Button, Flush, Round	24 V	1500000 Cycles	19.1 mm	No Marking	On-Mom	Anti-Vandal, Illuminated	Quick Connect - 0.110" (2.8mm)	-25 °C	85 °C	LED, Red	Silver	200000 Cycles		30 V
SCHURTER Inc. 1241.6624.1112000	100 mA	Panel Mount, Front	IP40	SPDT	Button, Flush, Round	24 V	1500000 Cycles	19.1 mm	No Marking	On-Mom	Anti-Vandal, Illuminated	Quick Connect - 0.110" (2.8mm)	-25 °C	85 °C	Green, LED	Silver	200000 Cycles		30 V
SCHURTER Inc. 1241.6624.1124000	5 A	Panel Mount, Front	IP40	SPDT	Button, Flush, Round	24 V	1500000 Cycles	19.1 mm	No Marking	On-Mom	Anti-Vandal, Illuminated	Quick Connect - 0.110" (2.8mm)	-25 °C	85 °C	Blue, LED	Silver	200000 Cycles	125 V
SCHURTER Inc. 1241.6624.1121000	5 A	Panel Mount, Front	IP40	SPDT	Button, Flush, Round	24 V	1500000 Cycles	19.1 mm	No Marking	On-Mom	Anti-Vandal, Illuminated	Quick Connect - 0.110" (2.8mm)	-25 °C	85 °C	LED, Red	Silver	200000 Cycles	125 V
SCHURTER Inc. 1241.6624.1123000	5 A	Panel Mount, Front	IP40	SPDT	Button, Flush, Round	24 V	1500000 Cycles	19.1 mm	No Marking	On-Mom	Anti-Vandal, Illuminated	Quick Connect - 0.110" (2.8mm)	-25 °C	85 °C	LED, Yellow	Silver	200000 Cycles	125 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 44.82

Description

General part information

1241.6624 Series

Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front
