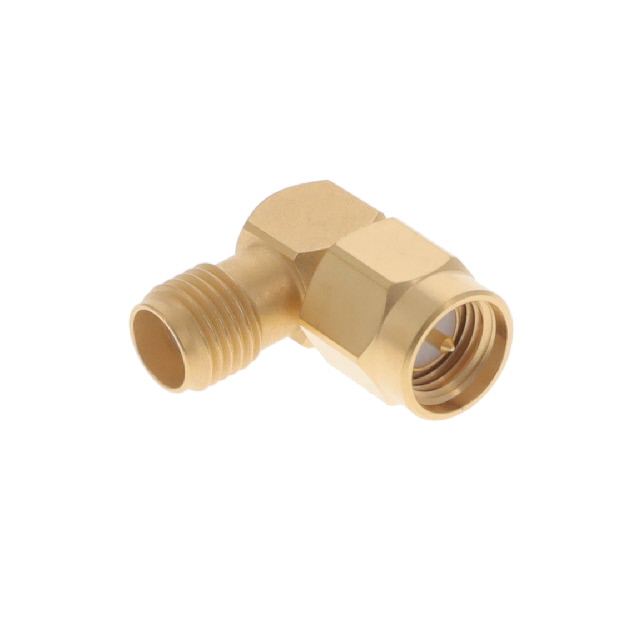

5919-1503-000

Active

Radiall USA, Inc.

SMA MF RA NA

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA MF RA NA

Technical Specifications

Parameters and characteristics for this part

Specification	5919-1503-000

Adapter Series	SMA to SMA
Adapter Type	Plug to Jack
Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Same Series
Convert From (Adapter End)	SMA Plug, Male Pin
Convert To (Adapter End)	SMA Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Style	Right Angle

Part	Adapter Type	Impedance	Style	Conversion Type	Frequency - Max [Max]	Mating Cycles	Convert To (Adapter End)	Adapter Series	Dielectric Material	Center Contact Material	Mounting Type	Body Material	Body Finish	Center Contact Plating	Convert From (Adapter End)
Radiall USA, Inc. 5919-1503-000	Plug to Jack	50 Ohms	Right Angle	Same Series	18 GHz	500	Female Socket SMA Jack	SMA to SMA	Polytetrafluoroethylene (PTFE)	Beryllium Copper Brass	Free Hanging (In-Line) Right Angle	Stainless Steel	Gold	Gold	SMA Plug Male Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMA Plug, Male Pin To SMA Jack, Female Socket 50 Ohms
