FW-22-02-G-D-642-083

Active

Samtec Inc.

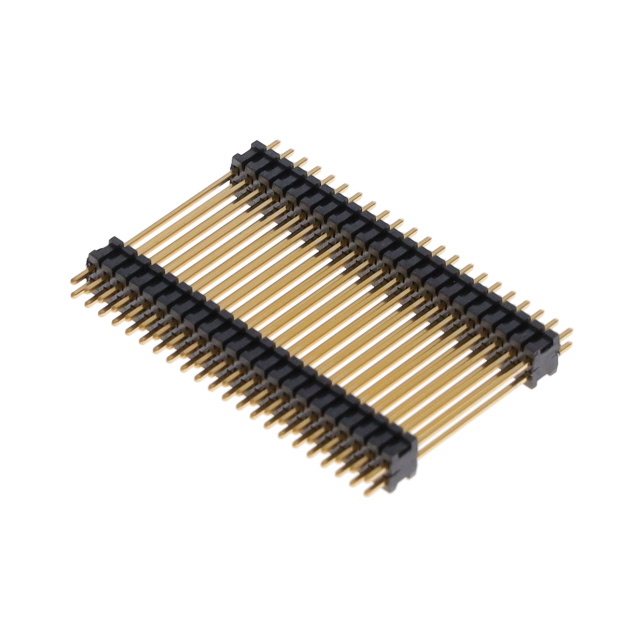

CONN HDR 44POS 0.05 STACK T/H

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR 44POS 0.05 STACK T/H

Technical Specifications

Parameters and characteristics for this part

Specification	FW-22-02-G-D-642-083

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin	0.8 in
Length - Overall Pin	20.32 mm
Length - Post (Mating) [x]	0.083 in
Length - Post (Mating) [x]	2.108 mm
Length - Stack Height [z]	16.307 mm
Length - Stack Height [z]	0.642 in
Length - Tail	1.905 mm
Length - Tail	0.075 in
Mounting Type	Through Hole
Number of Positions	44
Number of Rows	2
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Row Spacing	1.27 mm
Row Spacing	0.05 in
Termination	Solder

Part	Termination	Length - Tail	Length - Tail	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Length - Overall Pin	Length - Overall Pin	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Number of Positions	Contact Finish - Post (Mating)	Number of Rows	Length - Stack Height [x]	Length - Stack Height [x]	Color	Pitch [x]	Pitch [x]	Mounting Type	Row Spacing	Row Spacing	Length - Overall Pin [x]	Length - Overall Pin [x]	Length - Stack Height [z]	Length - Stack Height [z]
Samtec Inc. FW-22-02-L-D-650-075	Solder	1.905 mm	0.075 in	0.25 Ám	10 Áin	0.8 in	20.32 mm	0.075 in	1.905 mm	44	Gold	2	16.51 mm	0.65 in	Black	0.05 in	1.27 mm	Through Hole	1.27 mm	0.05 in
Samtec Inc. FW-22-02-L-D-620-100	Solder	1.905 mm	0.075 in	0.25 Ám	10 Áin			0.1 in	2.54 mm	44	Gold	2	15.748 mm	0.62 in	Black	0.05 in	1.27 mm	Through Hole	1.27 mm	0.05 in	20.193 mm	0.795 in
Samtec Inc. FW-22-02-G-D-442-075	Solder	1.905 mm	0.075 in	0.25 Ám	10 Áin			0.075 in	1.905 mm	44	Gold	2			Black	0.05 in	1.27 mm	Through Hole	1.27 mm	0.05 in	15.037 mm	0.592 in	0.442 in	11.227 mm
Samtec Inc. FW-22-02-LM-D-230-100	Solder	1.905 mm	0.075 in	0.25 Ám	10 Áin			0.1 in	2.54 mm	44	Gold	2			Black	0.05 in	1.27 mm	Through Hole	1.27 mm	0.05 in	10.287 mm	0.405 in
Samtec Inc. FW-22-02-G-D-642-083	Solder	1.905 mm	0.075 in	0.25 Ám	10 Áin	0.8 in	20.32 mm	0.083 in	2.108 mm	44	Gold	2			Black	0.05 in	1.27 mm	Through Hole	1.27 mm	0.05 in			0.642 in	16.307 mm
