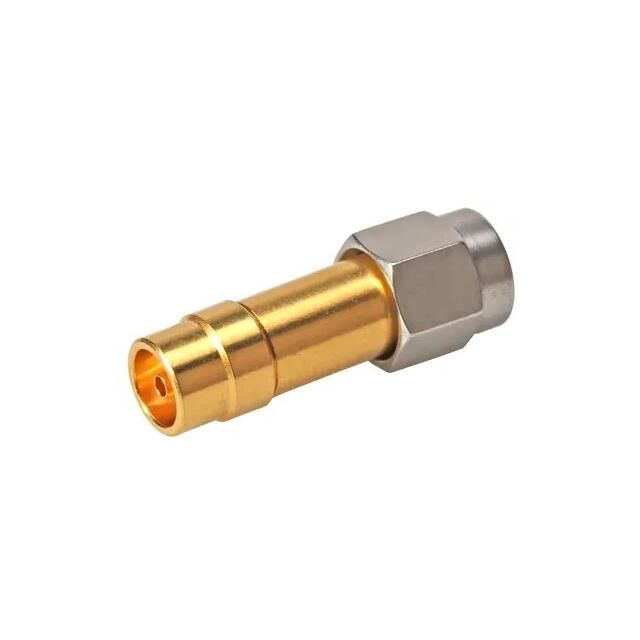

Specification	33_SMA-MBX-50-1/11-_NE

Adapter Series	SMA to MBX
Adapter Type	Plug to Jack
Body Finish	Gold
Body Material	Bronze
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Male, Female
Conversion Type	Between Series
Convert From (Adapter End)	Male Pin, SMA Plug
Convert To (Adapter End) Gender	Female Socket
Convert To (Adapter End) Type	MBX Jack
Dielectric Material	Polytetrafluoroethylene (PTFE), Perfluoroalkoxy (PFA)
Fastening Type	Threaded, Snap-On
Frequency - Max	6000 MHz
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Type	Free Hanging (In-Line)
Operating Temperature (Max)	155 °C
Operating Temperature (Min)	-55 °C
Style	Straight

33_SMA-MBX Series

Part	Fastening Type	Frequency - Max	Mounting Type	Center Contact Plating	Center Gender	Adapter Type	Conversion Type	Impedance	Style	Convert To (Adapter End) Type	Convert To (Adapter End) Gender	Adapter Series	Convert From (Adapter End)	Mating Cycles	Operating Temperature (Max)	Operating Temperature (Min)	Body Finish	Body Material	Dielectric Material	Center Contact Material
Huber+Suhner, Inc. 33_SMA-MBX-50-1/11-_NE	Snap-On Threaded	6000 MHz	Free Hanging (In-Line)	Gold	Female Male	Plug to Jack	Between Series	50 Ohm	Straight	MBX Jack	Female Socket	SMA to MBX	Male Pin SMA Plug	500 cycles	155 °C	-55 °C	Gold	Bronze	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Beryllium Copper
