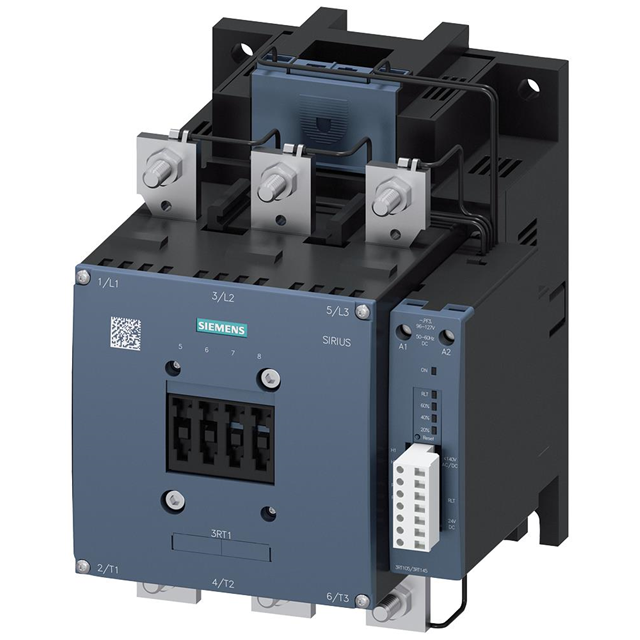

Specification	3RT10656PF35

Coil Power	580 W
Coil Voltage (Max)	127 VAC/DC
Coil Voltage (Min)	96 VAC/DC
Coil Voltage (Type)	DC, AC
Contact Form	A, PST-NO, Form, 3
Contact Rating (Current)	265 A
Features	Auxiliary Contacts
Mounting Type	Chassis Mount, DIN Rail
Operate Time	80 ms
Operating Temperature (Max)	60 °C
Operating Temperature (Min)	-25 °C
Pin Count	3 pins
Release Time	100 ms
Switching Voltage AC (Max)	1000 VAC
Termination Style	Screw Terminal

3RT1065 Series

Part	Operate Time	Release Time	Coil Power	Switching Voltage AC (Max)	Mounting Type	Pin Count	Contact Form	Coil Voltage (Max)	Coil Voltage (Type)	Coil Voltage (Min)	Operating Temperature (Min)	Operating Temperature (Max)	Contact Rating (Current)	Termination Style	Features
Siemens 3RT10652NP36	80 ms	100 ms	580 W	1000 VAC	Chassis Mount DIN Rail	3 pins	3 A Form PST-NO	277 VAC	AC DC	200 VAC/DC	-25 °C	60 °C	265 A	Screw Terminal	Auxiliary Contacts
Siemens 3RT10656AU36	95 ms	80 ms	650 W	1000 VAC	Chassis Mount DIN Rail	3 pins	3 A Form PST-NO	277 VAC	AC DC	240 VAC/DC	-25 °C	60 °C	265 A	Screw Terminal	Auxiliary Contacts
Siemens 3RT10656AR36	95 ms	80 ms	650 W	1000 VAC	Chassis Mount DIN Rail	3 pins	3 A Form PST-NO	480 VAC	AC DC	440 VAC/DC	-25 °C	60 °C	265 A	Screw Terminal	Auxiliary Contacts
Siemens 3RT10656AM36	95 ms	80 ms	650 W	1000 VAC	Chassis Mount DIN Rail	3 pins	3 A Form PST-NO	220 VAC/DC	AC DC	200 VAC/DC	-25 °C	60 °C	265 A	Screw Terminal	Auxiliary Contacts
Siemens 3RT10652AB36	95 ms	80 ms	650 W	1000 VAC	Chassis Mount DIN Rail	3 pins	3 A Form PST-NO	26 VAC/DC	AC DC	23 VDC	-25 °C	60 °C	265 A	Screw Terminal	Auxiliary Contacts
Siemens 3RT10656LA06	95 ms	80 ms		1000 VAC	Chassis Mount DIN Rail	3 pins	3 A Form PST-NO				-25 °C	60 °C	265 A	Screw Terminal	Auxiliary Contacts
Siemens 3RT10656SF363PA0	75 ms	130 ms	580 W	1000 VAC	Chassis Mount DIN Rail	3 pins	3 A Form PST-NO	127 VAC/DC	AC DC	96 VAC/DC	-25 °C	60 °C	265 A	Screw Terminal	Auxiliary Contacts
Siemens 3RT10656PF35	80 ms	100 ms	580 W	1000 VAC	Chassis Mount DIN Rail	3 pins	3 A Form PST-NO	127 VAC/DC	AC DC	96 VAC/DC	-25 °C	60 °C	265 A	Screw Terminal	Auxiliary Contacts
