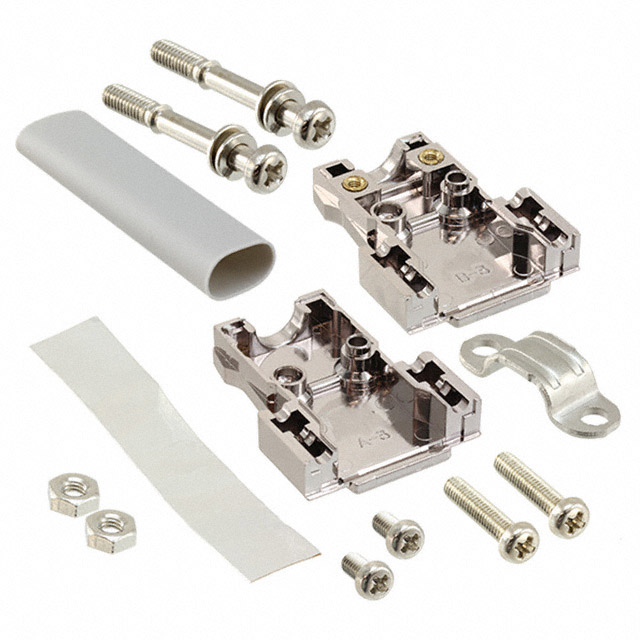

XM2S-0911
ActiveOmron Electronics Inc-EMC Div
CONN BACKSHELL 9POS 180DEG SHLD
Deep-Dive with AI
Search across all available documentation for this part.
XM2S-0911
ActiveOmron Electronics Inc-EMC Div
CONN BACKSHELL 9POS 180DEG SHLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | XM2S-0911 | XM2S Series |
|---|---|---|
| Accessory Type | Two Piece Backshell | Two Piece Backshell |
| Cable Exit | 180 ° | 180 ° |
| Cable Type | Round | Round |
| Color | Silver | Silver |
| Compatible D-Sub Size | HD15pos, 9pos | 37pos, HD62pos, HD15pos, 9pos |
| Compatible Shell Size | E | C, E |
| Features | Mating Screws M2.6 | Mating Screws 4-40, Mating Screws M2.6, Mating Screws M3 |
| Hardware | Assembly Hardware | Assembly Hardware |
| Material | Acrylonitrile Butadiene Styrene (ABS) | Acrylonitrile Butadiene Styrene (ABS) |
| Number of Positions | 9 | 9 - 37 |
| Plating | Nickel | Nickel |
| Primary Material | Plastic | Plastic |
| Shielding | Shielded | Shielded |
XM2S Series
CONN BACKSHELL 37POS 180DEG SHLD
| Part | Primary Material | Features | Plating | Accessory Type | Cable Type | Material | Compatible D-Sub Size | Number of Positions | Hardware | Color | Cable Exit | Shielding | Compatible Shell Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div XM2S-3713 | Plastic | Mating Screws 4-40 | Nickel | Two Piece Backshell | Round | Acrylonitrile Butadiene Styrene (ABS) | 37pos, HD62pos | 37 | Assembly Hardware | Silver | 180 ° | Shielded | C |
Omron Electronics Inc-EMC Div XM2S-0911 | Plastic | Mating Screws M2.6 | Nickel | Two Piece Backshell | Round | Acrylonitrile Butadiene Styrene (ABS) | 9pos, HD15pos | 9 | Assembly Hardware | Silver | 180 ° | Shielded | E |
Omron Electronics Inc-EMC Div XM2S-3712 | Plastic | Mating Screws M3 | Nickel | Two Piece Backshell | Round | Acrylonitrile Butadiene Styrene (ABS) | 37pos, HD62pos | 37 | Assembly Hardware | Silver | 180 ° | Shielded | C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 12.54 | |
| 10 | $ 11.11 | |||
| 25 | $ 10.68 | |||
| 50 | $ 10.26 | |||
| 100 | $ 9.69 | |||
| 250 | $ 8.83 | |||
| 500 | $ 8.26 | |||
| 1000 | $ 7.58 | |||
Description
General part information
XM2S Series
9 Position Two Piece Backshell Connector Silver 180° Shielded
