2987998
ActivePhoenix Contact

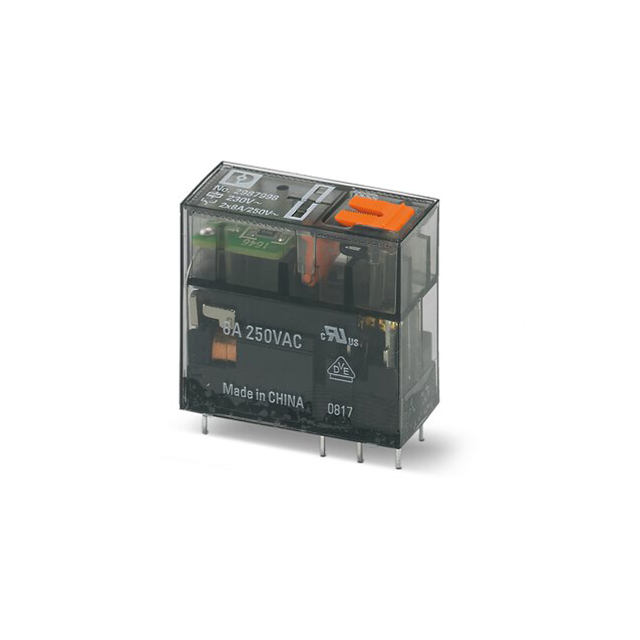

RELAY GEN PURPOSE DPDT 8A 230V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2987998
ActivePhoenix Contact
RELAY GEN PURPOSE DPDT 8A 230V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2987998 | 29879 Series |
|---|---|---|
| Approval Agency | cULus, EAC, UR | cULus, EAC, UR |
| Coil Current | 3.5 mA | 3.5 - 32 mA |
| Coil Resistance | 65.71 kOhms | 1.3 - 750 kOhms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 230 VAC | 24 - 230 VAC |
| Contact Form | DPDT (2 Form C) | SPDT (1 Form C), DPDT (2 Form C) |
| Contact Material | Silver Nickel (AgNi), Gold (Au) | Silver Nickel (AgNi), Gold (Au) |
| Contact Rating (Current) | 8 A | 8 - 16 A |
| Features | Test Button, Lighted Indicator, Diode, Mechanical Indicator | Test Button, Lighted Indicator, Diode, Mechanical Indicator |
| Mounting Type | Through Hole | Through Hole |
| Operate Time | 12 ms | 9 - 12 ms |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 8 ms | 6 - 8 ms |
| Switching Voltage | 250 VAC, 250 VDC | 250 VAC |
| Termination Style | PC Pin | PC Pin |
29879 Series
RELAY GEN PURPOSE SPDT 16A 230V
| Part | Contact Form | Relay Type | Coil Current | Contact Material | Coil Resistance | Release Time | Coil Voltage | Mounting Type | Contact Rating (Current) | Switching Voltage | Approval Agency | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Coil Type | Features | Operate Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2987914 | SPDT (1 Form C) | General Purpose | 3.5 mA | Silver Nickel (AgNi) | 65.7 kOhms | 8 ms | 230 VAC | Through Hole | 16 A | 250 VAC, 250 VDC | cULus, EAC, UR | PC Pin | -40 °C | 70 °C | Non Latching | ||
Phoenix Contact 2987985 | DPDT (2 Form C) | General Purpose | 18 mA | Gold (Au), Silver Nickel (AgNi) | 1.33 kOhms | 6 ms | 24 VDC | Through Hole | 8 A | 250 VAC, 250 VDC | cULus, EAC, UR | PC Pin | -40 °C | 70 °C | Non Latching | Diode, Lighted Indicator, Mechanical Indicator, Test Button | 9 ms |
Phoenix Contact 2987956 | DPDT (2 Form C) | General Purpose | 32 mA | Silver Nickel (AgNi) | 750 Ohms | 8 ms | 24 VAC | Through Hole | 8 A | 250 VAC, 250 VDC | cULus, EAC, UR | PC Pin | -40 °C | 70 °C | Non Latching | 12 ms | |
Phoenix Contact 2987972 | DPDT (2 Form C) | General Purpose | 3.5 mA | Silver Nickel (AgNi) | 65.7 kOhms | 8 ms | 230 VAC | Through Hole | 8 A | 250 VAC, 250 VDC | cULus, EAC, UR | PC Pin | -40 °C | 70 °C | Non Latching | 12 ms | |
Phoenix Contact 2987998 | DPDT (2 Form C) | General Purpose | 3.5 mA | Gold (Au), Silver Nickel (AgNi) | 65.71 kOhms | 8 ms | 230 VAC | Through Hole | 8 A | 250 VAC, 250 VDC | cULus, EAC, UR | PC Pin | -40 °C | 70 °C | Non Latching | Diode, Lighted Indicator, Mechanical Indicator, Test Button | 12 ms |
Phoenix Contact 2987927 | SPDT (1 Form C) | General Purpose | 17 mA | Gold (Au), Silver Nickel (AgNi) | 1.41 kOhms | 6 ms | 24 VDC | Through Hole | 16 A | 250 VAC, 250 VDC | cULus, EAC, UR | PC Pin | -40 °C | 70 °C | Non Latching | Diode, Lighted Indicator, Mechanical Indicator, Test Button | 9 ms |
Phoenix Contact 2987930 | SPDT (1 Form C) | General Purpose | 3.5 mA | Gold (Au), Silver Nickel (AgNi) | 65.71 kOhms | 8 ms | 230 VAC | Through Hole | 16 A | 250 VAC, 250 VDC | cULus, EAC, UR | PC Pin | -40 °C | 70 °C | Non Latching | Diode, Lighted Indicator, Mechanical Indicator, Test Button | 12 ms |
Phoenix Contact 2987969 | DPDT (2 Form C) | General Purpose | 7 mA | Silver Nickel (AgNi) | 8.1 kOhms | 8 ms | 120 VAC | Through Hole | 8 A | 250 VAC, 250 VDC | cULus, EAC, UR | PC Pin | -40 °C | 70 °C | Non Latching | 12 ms | |
Phoenix Contact 2987943 | DPDT (2 Form C) | General Purpose | 18 mA | Silver Nickel (AgNi) | 1.3 kOhms | 6 ms | 24 VDC | Through Hole | 8 A | 250 VAC, 250 VDC | cULus, EAC, UR | PC Pin | -40 °C | 70 °C | Non Latching | Diode, Lighted Indicator, Mechanical Indicator, Test Button | 9 ms |
Phoenix Contact 2987901 | SPDT (1 Form C) | General Purpose | 7 mA | Silver Nickel (AgNi) | 8.1 kOhms | 8 ms | 120 VAC | Through Hole | 16 A | 250 VAC, 250 VDC | cULus, EAC, UR | PC Pin | -40 °C | 70 °C | Non Latching | Lighted Indicator, Mechanical Indicator | 12 ms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.23 | |
| 10 | $ 8.62 | |||
| 50 | $ 7.93 | |||
| 100 | $ 7.33 | |||
| 250 | $ 6.98 | |||
| 500 | $ 6.95 | |||
Description
General part information
29879 Series
General Purpose Relay DPDT (2 Form C) 230VAC Coil Through Hole
