1058016-1
ActiveTE Connectivity AMP Connectors

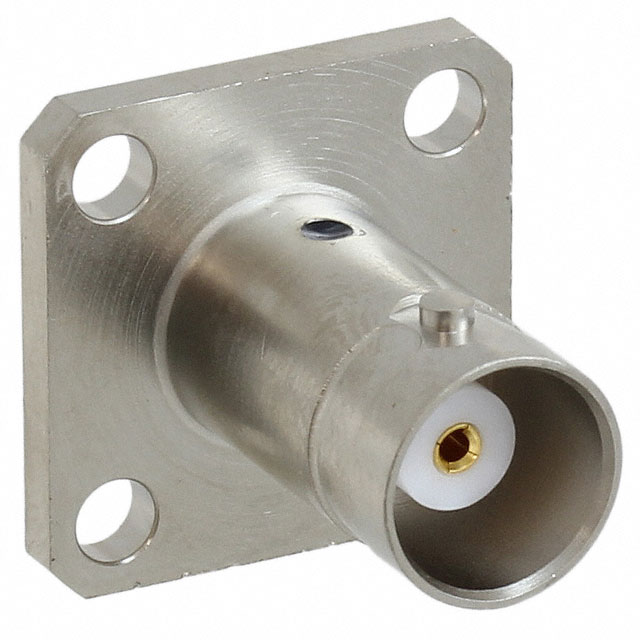

CONN BNC RCPT STR 50 OHM SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1058016-1 | 1058 Series |
|---|---|---|
| Adapter Series | - | BNC to SMA, OSM to OSN |
| Adapter Type | - | Plug to Jack, Jack to Jack |
| Body Finish | Nickel | Nickel, Gold; Passivated, Nickel; Passivated |
| Body Material | Brass | Brass, Stainless Steel |
| Center Contact Material | Beryllium Copper | Beryllium Copper, Brass |
| Center Contact Plating | Gold | Gold |
| Center Gender | - | Female to Female |
| Connector Style | BNC | BNC, TNC |
| Connector Type | Female Socket, Jack | Female Socket, Jack, Male Pin, Plug |
| Contact Termination | Solder | Solder, Solder Cup |
| Conversion Type | - | Between Series |
| Convert From (Adapter End) | - | Female Socket, SMB Plug, BNC Jack, SMA Jack |
| Convert To (Adapter End) | - | Female Socket, BNC Jack, SMA Jack, N Jack |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock | Bayonet Lock, Snap-On, Threaded |
| Features | Extended Insulation | Extended Insulation |
| Frequency - Max [Max] | 4 GHz | 4 - 18 GHz |
| Housing Color | Silver | Silver, Gold |
| Impedance | 50 Ohms | 50 Ohms |
| Includes | - | 1 Nut, 1 Connector, 1 Lockwasher |
| Insertion Loss | - | 0.13 dB |
| Mating Cycles | 500 | 500 |
| Mounting Feature | Flange | Flange, Bulkhead |
| Mounting Type | - | Free Hanging (In-Line) |
| Number of Ports | 1 | 1 |
| Operating Temperature [Max] | 165 °C | 105 - 165 °C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Shield Termination | Solder | Solder |
| Style | - | Straight |
| Voltage Rating | 500 V | 335 - 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
1058 Series
CONN BNC RCPT STR 50 OHM SOLDER
| Part | Mating Cycles | Center Contact Material | Body Finish | Center Contact Plating | Connector Style | Fastening Type | Contact Termination | Frequency - Max [Max] | Connector Type | Dielectric Material | Number of Ports | Shield Termination | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Feature | Body Material | Voltage Rating | Features | Housing Color | Impedance | Mounting Type | Conversion Type | Center Gender | Style | Convert To (Adapter End) | Adapter Type | Convert From (Adapter End) | Insertion Loss | Adapter Series | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1058016-1 | 500 | Beryllium Copper | Nickel | Gold | BNC | Bayonet Lock | Solder | 4 GHz | Female Socket, Jack | Polytetrafluoroethylene (PTFE) | 1 | Solder | -65 ░C | 165 °C | Flange | Brass | 500 V | Extended Insulation | Silver | 50 Ohms | ||||||||||
TE Connectivity AMP Connectors 1058694-1 | 500 | Brass | Gold; Passivated | Gold | TNC | Solder | 18 GHz | Male Pin, Plug | Polytetrafluoroethylene (PTFE) | 1 | Solder | -65 ░C | 105 ░C | Stainless Steel | 335 V | Gold, Silver | 50 Ohms | Free Hanging (In-Line) | ||||||||||||
TE Connectivity AMP Connectors 1058077-1 | Beryllium Copper | Nickel | Gold | Bayonet Lock, Snap-On | 4 GHz | Polytetrafluoroethylene (PTFE) | -65 ░C | 125 °C | Brass | 50 Ohms | Free Hanging (In-Line) | Between Series | Female to Female | Straight | BNC Jack, Female Socket | Plug to Jack | Female Socket, SMB Plug | 0.13 dB | ||||||||||||
TE Connectivity AMP Connectors 1058117-1 | Beryllium Copper | Nickel; Passivated | Gold | Bayonet Lock, Threaded | 4 GHz | Polytetrafluoroethylene (PTFE) | -65 ░C | 125 °C | Bulkhead | Brass, Stainless Steel | 50 Ohms | Between Series | Female to Female | Straight | Female Socket, SMA Jack | Jack to Jack | BNC Jack, Female Socket | BNC to SMA | 1 Connector, 1 Lockwasher, 1 Nut | |||||||||||
TE Connectivity AMP Connectors 1058014-1 | 500 | Beryllium Copper | Nickel | Gold | BNC | Bayonet Lock | Solder Cup | 4 GHz | Female Socket, Jack | Polytetrafluoroethylene (PTFE) | 1 | Solder | -65 ░C | 125 °C | Flange | Brass | 500 V | Silver | 50 Ohms | |||||||||||
TE Connectivity AMP Connectors 1058653-1 | Beryllium Copper | Gold | 18 GHz | Polytetrafluoroethylene (PTFE) | -65 ░C | 125 °C | Flange | Stainless Steel | 50 Ohms | Between Series | Female to Female | Straight | Female Socket, N Jack | Jack to Jack | Female Socket, SMA Jack | OSM to OSN | ||||||||||||||
TE Connectivity AMP Connectors 1058058-1 | Beryllium Copper | Gold; Passivated | Gold | Bayonet Lock, Threaded | 4 GHz | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Brass, Stainless Steel | 50 Ohms | Free Hanging (In-Line) | Between Series | Female to Female | Straight | Female Socket, SMA Jack | Jack to Jack | BNC Jack, Female Socket | BNC to SMA |
Description
General part information
1058 Series
BNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder
Documents
Technical documentation and resources
