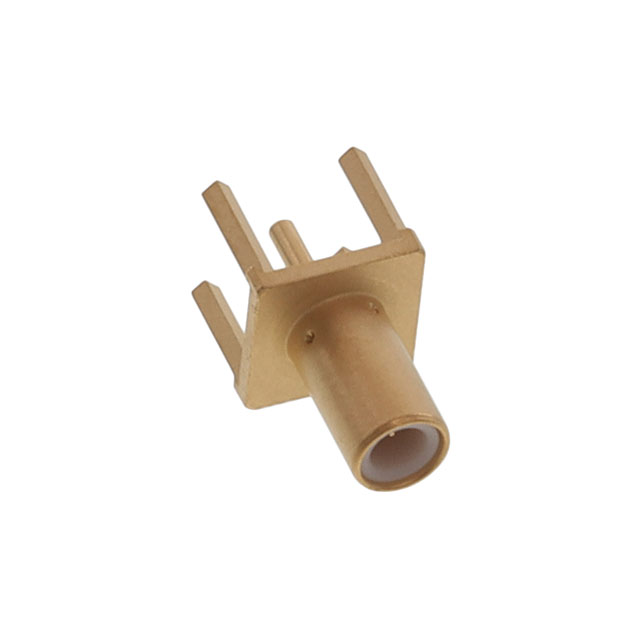

RF SMB CONNECTOR, 1 CONTACT(S), MALE, BOARD MOUNT, SOLDER TERMINAL, DETENT, RECEPTACLE

Search across all available documentation for this part.

Active

Radiall USA, Inc.

RF SMB CONNECTOR, 1 CONTACT(S), MALE, BOARD MOUNT, SOLDER TERMINAL, DETENT, RECEPTACLE

Technical Specifications

Parameters and characteristics for this part

Specification	R116426000

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Male Pin, Receptacle
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	1000 VDC

Part	Number of Ports	Mating Cycles	Frequency - Max [Max]	Connector Type	Center Contact Plating	Shield Termination	Fastening Type	Mounting Type	Body Finish	Connector Style	Voltage Rating	Center Contact Material	Dielectric Material	Contact Termination	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Impedance
Radiall USA, Inc. R116426000	1	500	4 GHz	Male Pin Receptacle	Gold	Solder	Snap-On	Through Hole	Gold	SMB	1000 VDC	Brass	Polytetrafluoroethylene (PTFE)	Solder	Brass	-65 ░C	165 °C	Gold	50 Ohms
