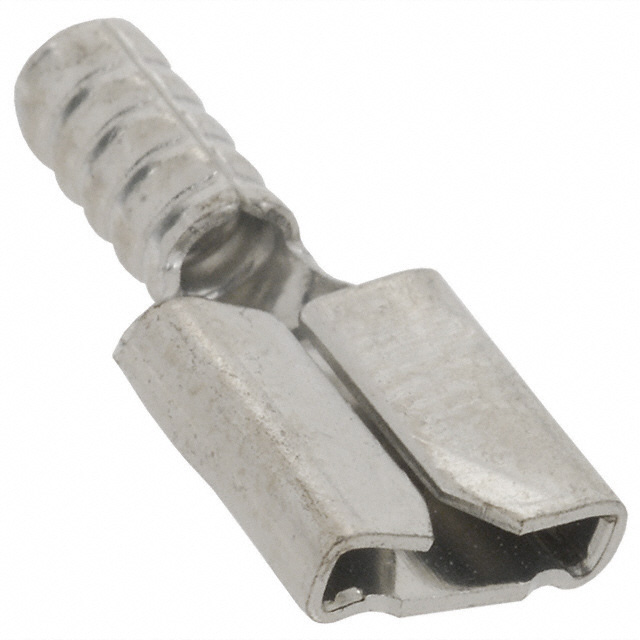

MU14-250DFK
Active3M
CONN QC RCPT 14-16AWG 0.250
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MU14-250DFK
Active3M
CONN QC RCPT 14-16AWG 0.250
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MU14-250DFK | MU14 Series |
|---|---|---|
| Color | - | Blue |
| Contact Finish | Tin | Tin, Nickel |
| Contact Material | Brass | ETP, Copper, Brass, Steel |
| Diameter - Barrel ID | - | 0.09 " |
| Diameter - Barrel ID | - | 2.29 mm |
| Features | Butted Seam | Butted Seam |
| Gender | Female | Female, Male |
| Insulation | Non-Insulated | Non-Insulated, Fully Insulated |
| Insulation Diameter | - | 0.08 in |
| Insulation Diameter | - | 2.03 mm |
| Length - Overall | - | 0.9 in |
| Length - Overall | - | 22.86 - 23.62 mm |
| Length - Overall [x] | 0.66 in | 0.58 - 0.93 " |
| Length - Overall [x] | 16.76 mm | 14.73 - 18.8 mm |
| Length - Pin | - | 0.47 in |
| Length - Pin | - | 11.94 mm |
| Length - Ring Center to Termination | - | 0.25 in |
| Length - Ring Center to Termination | - | 6.35 mm |
| Length - Ring Center to Termination | - | 0.4 in |
| Length - Ring Center to Termination | - | 10.16 mm |
| Length - Termination | - | 6.35 mm |
| Length - Termination | - | 0.25 " |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle |
| Number of Wire Entries | - | 2 |
| Pin Diameter | - | 0.08 in |
| Pin Diameter | - | 2.03 mm |
| Stud/Tab Size | - | 8 Stud |
| Stud/Tab Size | - | 0.25 - 10 Stud |
| Tab Thickness | 0.032 in | 0.02 - 0.032 " |
| Tab Thickness | 0.81 mm | 0.51 - 0.81 mm |
| Tab Width | 6.35 mm | 4.75 - 6.35 mm |
| Tab Width | 0.25 in | 0.187 - 0.25 in |
| Terminal Type | Standard | Flanged, Butt Splice, Inline, Individual Openings, Snap, Spring, Flag, Angled - 90°, Standard, Circular |
| Termination | Crimp | Crimp |
| Thickness | - | 0.03 in |
| Thickness | - | 0.76 mm |
| Width - Outer Edges | - | 0.25 - 0.56 " |
| Width - Outer Edges | - | 6.35 - 14.22 mm |
| Width - Outer Edges | - | 7.87 mm |
MU14 Series
CONN SPADE TERM 14-16AWG #8
| Part | Length - Ring Center to Termination [x] | Length - Ring Center to Termination [x] | Length - Termination | Length - Termination [x] | Stud/Tab Size | Terminal Type | Termination | Length - Overall [x] | Length - Overall [x] | Contact Material | Mounting Type | Contact Finish | Insulation | Features | Number of Wire Entries | Color | Width - Outer Edges [y] | Width - Outer Edges [y] | Length - Ring Center to Termination | Length - Ring Center to Termination | Stud/Tab Size | Length - Overall | Length - Overall | Tab Thickness | Tab Thickness | Tab Width | Tab Width | Gender | Thickness | Thickness | Width - Outer Edges | Pin Diameter [diameter] | Pin Diameter [diameter] | Length - Pin [x] | Length - Pin [x] | Diameter - Barrel ID [diameter] | Diameter - Barrel ID [diameter] | Insulation Diameter [diameter] | Insulation Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0.25 in | 6.35 mm | 6.35 mm | 0.25 " | 8 Stud | Flanged | Crimp | 0.65 " | 16.5 mm | Copper, ETP | Free Hanging (In-Line) | Tin | Non-Insulated | Butted Seam | ||||||||||||||||||||||||||
Butt Splice, Individual Openings, Inline | Crimp | Fully Insulated | 2 | Blue | |||||||||||||||||||||||||||||||||||
6.35 mm | 0.25 " | Snap, Spring | Crimp | Copper, ETP | Free Hanging (In-Line) | Tin | Non-Insulated | Butted Seam | 0.43 " | 10.92 mm | 0.4 in | 10.16 mm | 0.25 Stud | 0.9 in | 22.86 mm | ||||||||||||||||||||||||
Angled - 90°, Flag | Crimp | Brass | Free Hanging (In-Line), Right Angle | Tin | Non-Insulated | Butted Seam | 0.02 " | 0.51 mm | 4.75 mm | 0.187 in | Female | ||||||||||||||||||||||||||||
Standard | Crimp | 0.58 in | 14.73 mm | Steel | Free Hanging (In-Line) | Nickel | Non-Insulated | Butted Seam | 0.02 " | 0.51 mm | 4.75 mm | 0.187 in | Female | ||||||||||||||||||||||||||
Circular | Crimp | 0.93 in | Steel | Free Hanging (In-Line) | Nickel | Non-Insulated | 0.56 in | 14.22 mm | 0.25 Stud | 23.62 mm | 0.03 in | 0.76 mm | |||||||||||||||||||||||||||
Standard | Crimp | 0.58 in | 14.73 mm | Brass | Free Hanging (In-Line) | Tin | Non-Insulated | Butted Seam | 0.02 " | 0.51 mm | 4.75 mm | 0.187 in | Female | ||||||||||||||||||||||||||
3M MU14BCX | Butt Splice, Individual Openings, Inline | Crimp | Non-Insulated | 2 | |||||||||||||||||||||||||||||||||||
Standard | Crimp | 0.66 in | 16.76 mm | Brass | Free Hanging (In-Line) | Tin | Non-Insulated | Butted Seam | 0.032 in | 0.81 mm | 6.35 mm | 0.25 in | Female | ||||||||||||||||||||||||||
0.25 in | 6.35 mm | 6.35 mm | 0.25 " | Snap, Spring | Crimp | 0.68 in | 17.27 mm | Copper, ETP | Free Hanging (In-Line) | Tin | Non-Insulated | 0.32 in | 8.13 mm | 10 Stud |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.26 | |
| 10 | $ 0.22 | |||
| 25 | $ 0.20 | |||
| 50 | $ 0.18 | |||
| 100 | $ 0.17 | |||
| 250 | $ 0.16 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.13 | |||
Description
General part information
MU14 Series
0.250" (6.35mm) Quick Connect Female 14-16 AWG Crimp Connector Non-Insulated
