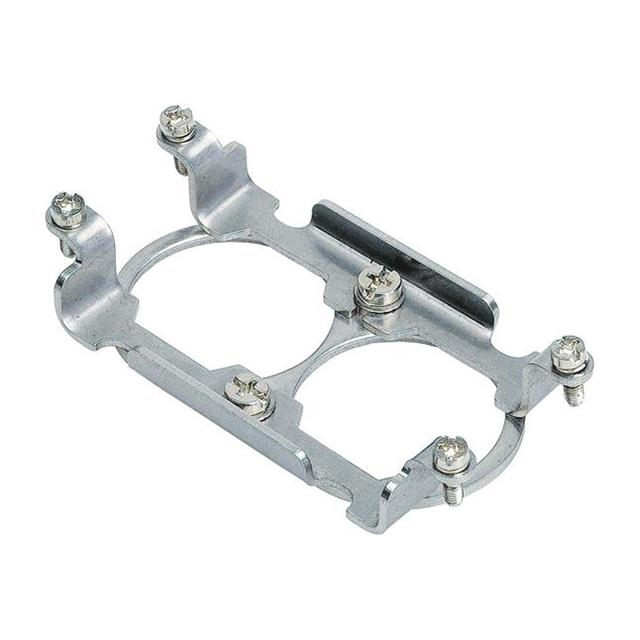

09110009952 - 09110009952

09110009952

Active

HARTING

CONNECTOR ACCESSORY, FRAME, HARTING HAN HC MODULAR 350 SERIES HEAVY DUTY CONNECTORS

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 77.50
		10	$ 58.27
		25	$ 52.70
		50	$ 49.09
		100	$ 45.92
Newark	Each	1	$ 50.02
		5	$ 47.46
		10	$ 45.15
		25	$ 43.06
		50	$ 41.15

Description

General part information

09110009 Series

2 Module Non-Gendered Heavy Duty Fixed Frame Size 16B

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	09110009952	09110009 Series

	-	-
Frame Type	Fixed Frame	Fixed Frame, Assembly Frame Module
Gender	Non-Gendered	Non-Gendered, Male, Female
Includes	-	4 pcs
Includes	-	4 pcs
Includes	-	1 pcs
Includes	-	4 Screws, 2 pc Frame, 1 Frame, 4 Tubes, 2 Pins, 4 Washers
Material	Stainless Steel	Stainless Steel, Metal
Number of Modules	2	1 - 8
Size	16 B	16 - 48 B
Size	-	24HPR, 6B

09110009 Series

CONNECTOR ACCESSORY, FRAME, HARTING HAN HC MODULAR 350 SERIES HEAVY DUTY CONNECTORS

Part	Material	Number of Modules	Frame Type	Size	Gender	Size	Includes [custom]	Includes [custom]	Includes [custom]	Includes
HARTING 09110009952	Stainless Steel	2	Fixed Frame	16 B	Non-Gendered
HARTING 09110009957	Stainless Steel		Fixed Frame		Male	24HPR
HARTING 09110009966					Male
HARTING 09110009991
HARTING 09110009941	Metal		Fixed Frame	24 B	Male
HARTING 09110009959
HARTING 09110009935		8	Fixed Frame		Non-Gendered	24HPR
HARTING 09110009963	Stainless Steel		Fixed Frame		Non-Gendered	24HPR	4 pcs	4 pcs	1 pcs
HARTING 09110009936		8	Fixed Frame		Non-Gendered	24HPR
HARTING 09110009972	Stainless Steel	2	Assembly Frame Module		Non-Gendered	24HPR
