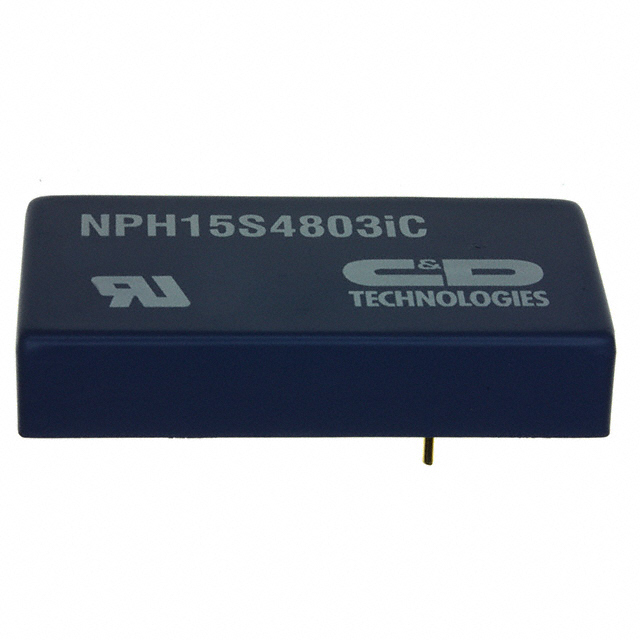

NPH15S4803IC
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 3.4V 15W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NPH15S4803IC
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 3.4V 15W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NPH15S4803IC |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 4.4 A |
| Efficiency | 83 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 110 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-DIP Module |
| Power (Watts) | 15 W |
| Size / Dimension [x] | 1.97 " |
| Size / Dimension [x] | 50 mm |
| Size / Dimension [y] | 24.9 mm |
| Size / Dimension [y] | 0.98 in |
| Size / Dimension [z] | 9.9 mm |
| Size / Dimension [z] | 0.39 in |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 3.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 72.70 | |
| 6 | $ 67.00 | |||
NPH15S48 Series
DC DC CONVERTER 3.4V 15W
| Part | Voltage - Isolation | Power (Watts) | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Output 1 | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Outputs | Package / Case | Voltage - Input (Min) [Min] | Type | Current - Output (Max) [Max] | Applications | Efficiency | Voltage - Input (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. NPH15S4803IC | 1.5 kV | 15 W | 24.9 mm | 9.9 mm | 1.97 " | 0.39 in | 0.98 in | 50 mm | 3.4 V | Through Hole | -40 °C | 110 °C | 1 | 6-DIP Module | 36 V | Isolated Module | 4.4 A | ITE (Commercial) | 83 % | 75 V |
Description
General part information
NPH15S48 Series
Isolated Module DC DC Converter 1 Output 3.4V 4.4A 36V - 75V Input
