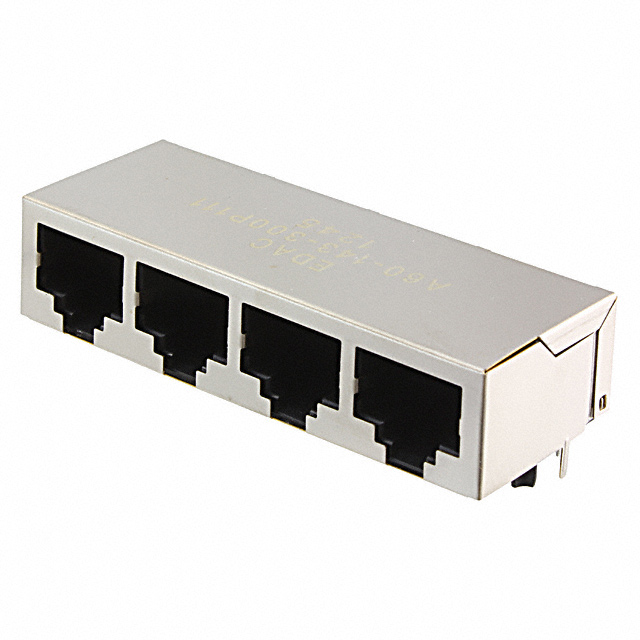

A60-143-300P111

Active

EDAC Inc.

CONN JACK 4PORT 1000 BASE-T PCB

Search across all available documentation for this part.

Active

EDAC Inc.

CONN JACK 4PORT 1000 BASE-T PCB

Technical Specifications

Parameters and characteristics for this part

Specification	A60-143-300P111

Applications	AutoMDIX, 10/100/1000 Base-T
Connector Type	RJ45
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Phosphor Bronze
Height Above Board [z]	13.8 mm
Height Above Board [z]	0.543 in
Housing Material	Polyester, Polybutylene Terephthalate (PBT)
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Cores per Jack	8
Number of Ports	4
Number of Rows	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Orientation	90 °
Shielding	Shielded
Tab Direction	Down
Termination	Solder

CONN JACK 4PORT 1000 BASE-T PCB

Part	Contact Material	Height Above Board [z]	Height Above Board [z]	Housing Material	Orientation	Connector Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Termination	Mounting Type	Number of Rows	Number of Cores per Jack	Number of Ports	Tab Direction	Applications	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	LED Color
EDAC Inc. A60-143-300P111	Phosphor Bronze	13.8 mm	0.543 in	Polybutylene Terephthalate (PBT), Polyester	90 °	RJ45	Gold	15 µin	0.38 µm	Solder	Through Hole	1	8	4	Down	10/100/1000 Base-T, AutoMDIX	Shielded	70 °C	0 °C	Does Not Contain LED

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Port RJ45Through Hole 10/100/1000 Base-T, AutoMDIX
