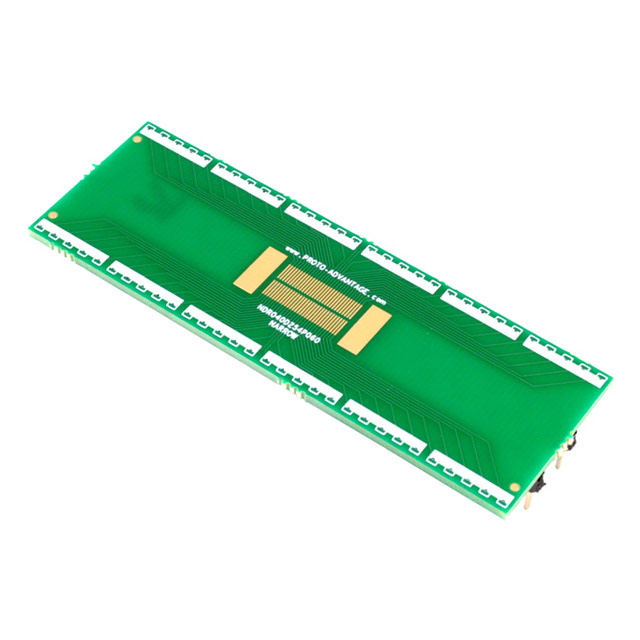

NDR040D254P060

Active

Chip Quik Inc.

NARROW DUAL ROW 0.4MM PITCH 60-P

Search across all available documentation for this part.

Active

Chip Quik Inc.

NARROW DUAL ROW 0.4MM PITCH 60-P

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.99

General part information

NARROW DUAL ROW 0.4MM PITCH 60-P

Technical documentation and resources

Specification	NDR040D254P060	NDR040 Series

Material	FR4 Epoxy Glass	FR4 Epoxy Glass, Stainless Steel
Number of Positions	60	40 - 60
Package Accepted	0.4mm Connector	0.4mm Connector
Pitch [x]	0.016 in	0.016 in
Pitch [x]	0.4 mm	0.4 mm
Proto Board Type	SMD to DIP	SMD to DIP
Size / Dimension [x]	76.2 mm	50.8 - 76.2 mm
Size / Dimension [x]	3 "	2 - 3 in
Size / Dimension [y]	25.4 mm	25.4 mm
Size / Dimension [y]	25.4 mm	25.4 mm

Part	Material	Pitch [x]	Pitch [x]	Proto Board Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Number of Positions	Package Accepted
Chip Quik Inc. NDR040D254P040	FR4 Epoxy Glass	0.016 in	0.4 mm	SMD to DIP	2 in	50.8 mm	25.4 mm	25.4 mm	40	0.4mm Connector
Chip Quik Inc. NDR040P060-S	Stainless Steel	0.016 in	0.4 mm						60
Chip Quik Inc. NDR040D254P060	FR4 Epoxy Glass	0.016 in	0.4 mm	SMD to DIP	3 "	76.2 mm	25.4 mm	25.4 mm	60	0.4mm Connector
Chip Quik Inc. NDR040P040-S	Stainless Steel	0.016 in	0.4 mm						40
