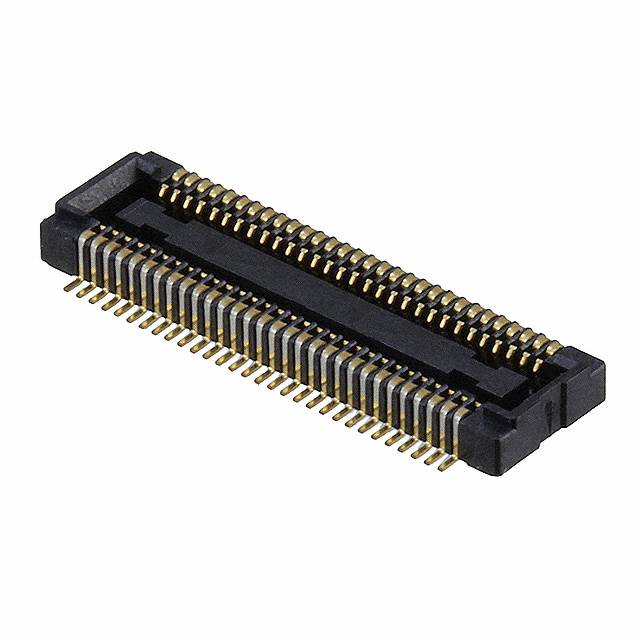

AXK760347A

Active

Panasonic Electric Works

CONN SOCKET 60POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN SOCKET 60POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXK760347A

Connector Type	Center Strip, Socket, Outer Edge Contacts
Contact Finish	Gold
Height Above Board [z]	2.41 mm
Height Above Board [z]	0.095 in
Mated Stacking Heights	2.5 mm
Mounting Type	Surface Mount
Number of Positions	60
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Mated Stacking Heights	Pitch [x]	Pitch [x]	Number of Rows	Contact Finish	Height Above Board [z]	Height Above Board [z]	Mounting Type	Connector Type	Number of Positions
Panasonic Electric Works AXK760347A	2.5 mm	0.016 in	0.4 mm	2	Gold	2.41 mm	0.095 in	Surface Mount	Center Strip Outer Edge Contacts Socket	60

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

60 Position Connector Socket, Center Strip, Outer Edge Contacts Surface Mount Gold
