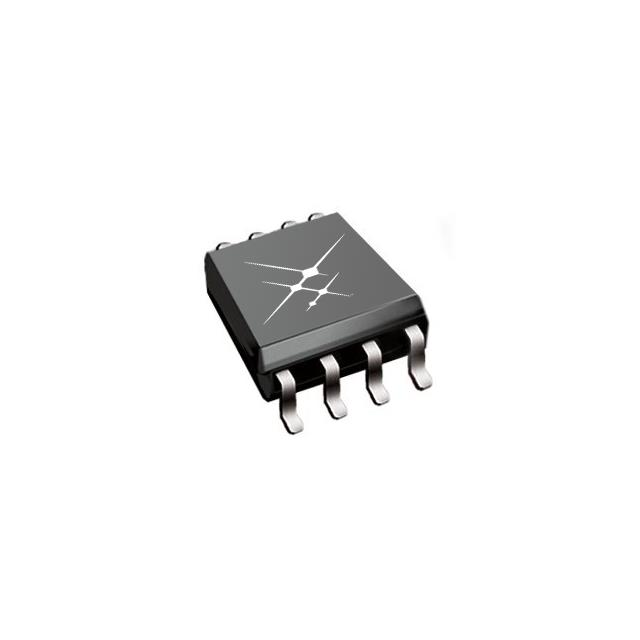

SI8720BC-A-IPR

Skyworks Solutions Inc.

DGTL ISO 3750VRMS 1CH GP 8DIP GW

Search across all available documentation for this part.

Skyworks Solutions Inc.

DGTL ISO 3750VRMS 1CH GP 8DIP GW

Technical Specifications

Parameters and characteristics for this part

Specification	SI8720BC-A-IPR

Channel Type	Unidirectional
Common Mode Transient Immunity (Min) [Min]	35 kV/µs
Data Rate	15 Mbps
Inputs - Side 1/Side 2 [custom]	0
Inputs - Side 1/Side 2 [custom]	1
Isolated Power	False
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Propagation Delay tpLH / tpHL (Max) [custom]	50 ns
Propagation Delay tpLH / tpHL (Max) [custom]	50 ns
Pulse Width Distortion (Max) [Max]	25 ns
Rise / Fall Time (Typ) [custom]	2.5 ns
Rise / Fall Time (Typ) [custom]	2.5 ns
Supplier Device Package	8-DIP Gull Wing
Technology	Capacitive Coupling
Type	General Purpose
Voltage - Isolation	3750 Vrms
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	2.5 V

Part	Channel Type	Common Mode Transient Immunity (Min) [Min]	Number of Channels	Technology	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Package / Case	Package / Case [y]	Package / Case [x]	Supplier Device Package	Type	Mounting Type	Inputs - Side 1/Side 2 [custom]	Pulse Width Distortion (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Voltage - Supply [Min]	Voltage - Supply [Max]	Voltage - Isolation	Data Rate
Skyworks Solutions Inc. SI8720BC-A-ISR	Unidirectional	35 kV/µs	1	Capacitive Coupling	50 ns	50 ns	8-SOIC	3.9 mm	0.154 in	8-SOIC	General Purpose	Surface Mount	1	25 ns	125 °C	-40 °C	2.5 ns	2.5 ns	2.5 V	5.5 V	3750 Vrms	15 Mbps
Skyworks Solutions Inc. SI8720BC-A-IPR	Unidirectional	35 kV/µs	1	Capacitive Coupling	50 ns	50 ns				8-DIP Gull Wing	General Purpose	Surface Mount	1	25 ns	125 °C	-40 °C	2.5 ns	2.5 ns	2.5 V	5.5 V	3750 Vrms	15 Mbps
Skyworks Solutions Inc. SI8720BC-A-IP	Unidirectional	35 kV/µs	1	Capacitive Coupling	50 ns	50 ns				8-DIP Gull Wing	General Purpose	Surface Mount	1	25 ns	125 °C	-40 °C	2.5 ns	2.5 ns	2.5 V	5.5 V	3750 Vrms	15 Mbps

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Digital Isolator 3750Vrms 1 Channel 15Mbps 35kV/µs CMTI 8-SMD, Gull Wing
