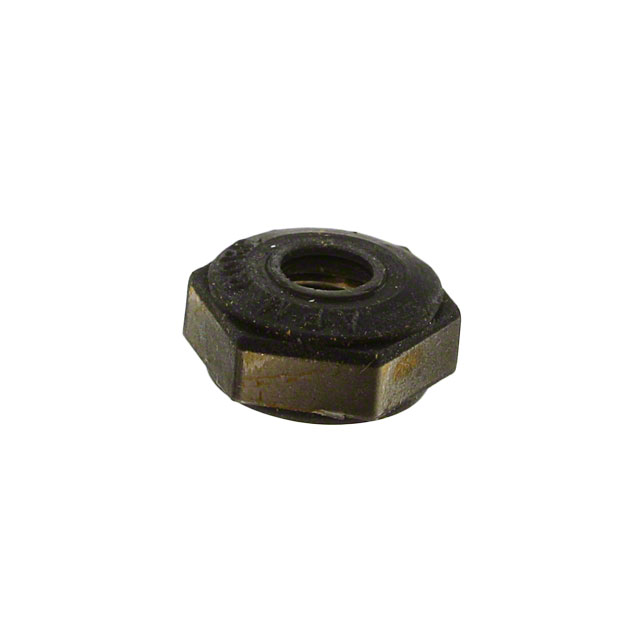

1332/46 12

Active

APM HEXSEAL

ROTARY SHAFT SEAL BLACK

Search across all available documentation for this part.

Active

APM HEXSEAL

ROTARY SHAFT SEAL BLACK

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1332/46 12	1332 Series

Actuator Diameter [diameter]	0.236 in	0.197 - 0.236 in
Actuator Diameter [diameter]	6 mm	5 - 6 mm
Color	Black	Black, Gray
For Use With/Related Products	Multiple Series	Multiple Series
Ingress Protection	IP66/IP68	IP66/IP68
Material	Silicone Rubber	Silicone Rubber
Mounting Feature	Front of Panel	Front of Panel
Operating Temperature [Max]	204 °C	204 °C
Operating Temperature [Min]	-70 °C	-70 - -62 °C
Size / Dimension [z]	0.219 in	0.219 - 0.236 in
Size / Dimension [z]	5.56 mm	5.56 - 5.9 mm
Thread Size	M10x0.75	M10x0.75, M7x0.75, M10x1
Type	Rotary Shaft Seal	Rotary Shaft Seal

ROTARY SHAFT SEAL BLACK

Part	Mounting Feature	Size / Dimension [z]	Size / Dimension [z]	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Material	Color	Thread Size	For Use With/Related Products	Type
APM HEXSEAL 1332/46 12	Front of Panel	0.219 in	5.56 mm	0.236 in	6 mm	IP66/IP68	204 °C	-70 °C	Silicone Rubber	Black	M10x0.75	Multiple Series	Rotary Shaft Seal
APM HEXSEAL 1332/39 2	Front of Panel			0.197 in	5 mm	IP66/IP68	204 °C	-62 °C	Silicone Rubber	Gray	M7x0.75	Multiple Series	Rotary Shaft Seal
APM HEXSEAL 1332/45	Front of Panel	0.236 "	5.9 mm	0.236 in	6 mm	IP66/IP68	204 °C	-62 °C	Silicone Rubber	Gray	M10x1	Multiple Series	Rotary Shaft Seal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

ROTARY SHAFT SEAL BLACK
