MNI5/16-12
ActiveEssentra Access Solutions

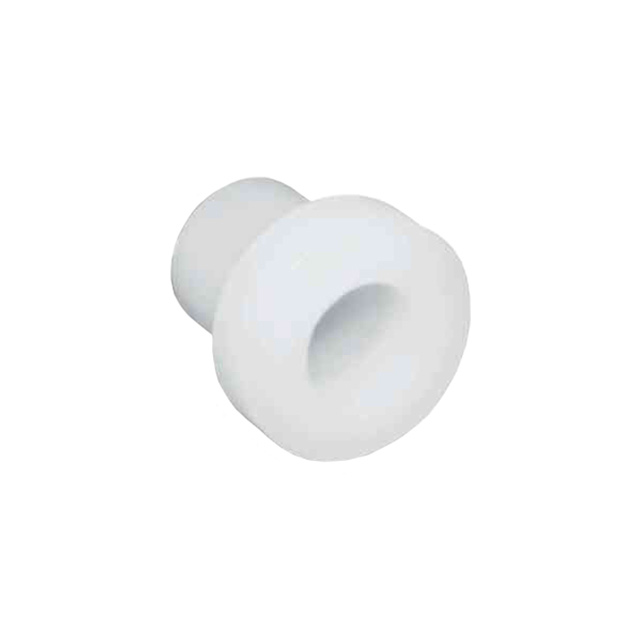

WASHER SHOULDER 5/16 NYLON
Deep-Dive with AI
Search across all available documentation for this part.
MNI5/16-12
ActiveEssentra Access Solutions
WASHER SHOULDER 5/16 NYLON
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MNI5/16-12 |
|---|---|
| Diameter - Inside [diameter] | 8.13 mm |
| Diameter - Inside [diameter] | 0.32 in |
| Diameter - Outside [diameter] | 0.62 " |
| Diameter - Outside [diameter] | 15.75 mm |
| Diameter - Shoulder [diameter] | 9.14 mm |
| Diameter - Shoulder [diameter] | 0.36 in |
| Length - Below Head | 0.188 " |
| Length - Below Head | 3/16 |
| Length - Below Head | 4.78 mm |
| Material | Nylon |
| Thickness - Overall | 6.35 mm |
| Thickness - Overall | 0.25 in |
| Thickness - Overall [custom] | 0.25 in |
| Thread/Screw/Hole Size | 0.3125 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.14 | |
| 5 | $ 0.12 | |||
| 10 | $ 0.10 | |||
| 25 | $ 0.09 | |||
| 50 | $ 0.09 | |||
| 100 | $ 0.08 | |||
| 250 | $ 0.08 | |||
| 500 | $ 0.07 | |||
| 1000 | $ 0.07 | |||
Description
General part information
MNI5/16 Series
5/16" Shoulder Washer 0.250" (6.35mm) 1/4" Thick Nylon
