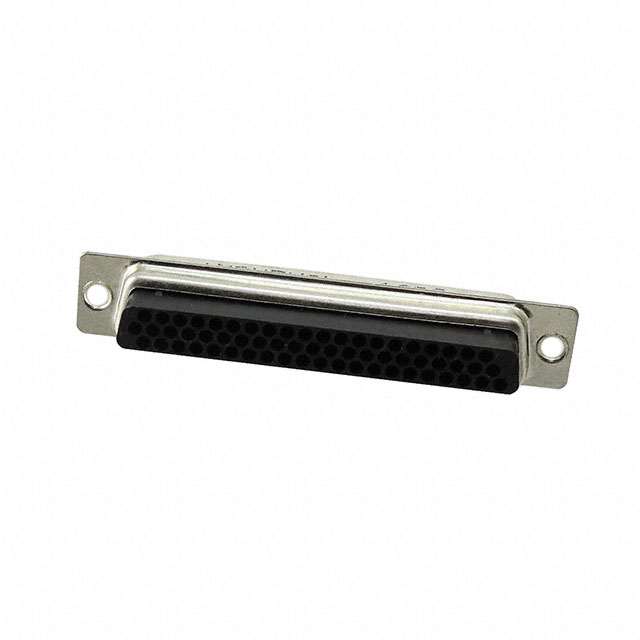

L777HRC62P

Active

Amphenol ICC (Commercial Products)

CONN D-SUB HD HOUSING PLUG 62POS

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

CONN D-SUB HD HOUSING PLUG 62POS

Technical Specifications

Parameters and characteristics for this part

Specification	L777HRC62P

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Plug for Male Contacts
Contact Type	Signal
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	62
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Finish Thickness	2.54 µm
Shell Finish Thickness	100 µin
Shell Size, Connector Layout	4

Part	Number of Rows	Color	Features	Connector Type	Connector Style	Contact Type	Dielectric Material	Note	Shell Finish Thickness	Shell Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Number of Positions	Shell Size, Connector Layout	Mounting Type
Amphenol ICC (Commercial Products) L777HRC62PVF	3	Black	Grounding Indents	Plug for Male Contacts	D-Sub High Density	Signal	Polybutylene Terephthalate (PBT) Glass Filled	Contacts Not Included	2.54 µm	100 µin	-55 °C	125 °C	Female Screwlock (4-40) Mating Side	62	4	Free Hanging (In-Line)
Amphenol ICC (Commercial Products) L777HRC62P	3	Black	Grounding Indents	Plug for Male Contacts	D-Sub High Density	Signal	Polybutylene Terephthalate (PBT) Glass Filled	Contacts Not Included	2.54 µm	100 µin	-55 °C	125 °C	Housing/Shell (Unthreaded)	62	4	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Plug for Male Contacts Housing D-Sub, High Density Connector 62 Position
