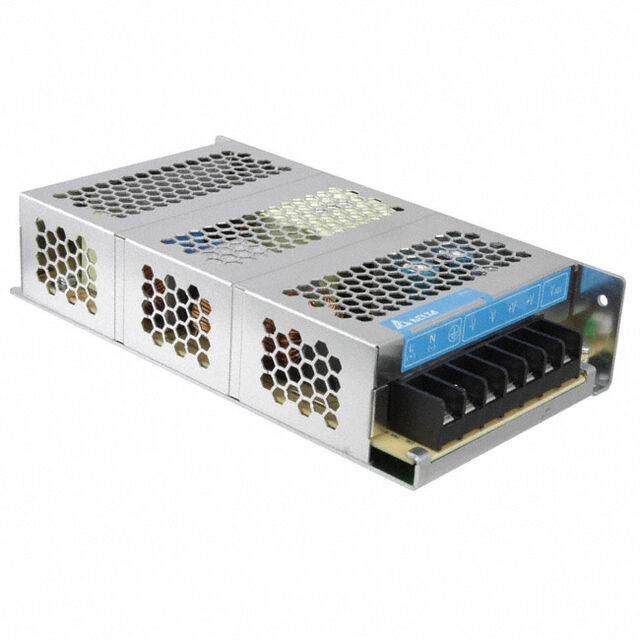

PMC-12V150W1BA

Obsolete

AC/DC CONVERTER 12V 150W

Obsolete

AC/DC CONVERTER 12V 150W

Description

General part information

Enclosed AC DC Converters 1 Output 12V 85 ~ 264 VAC Input

Parameters and characteristics for this part

Specification	PMC-12V150W1BA

Applications	ITE (Commercial)
Approval Agency	CE, CCC, CB, cURus, TUV
Current - Output 1	12.5 A
Efficiency	88 %
Features	PFC, DC Input Capable, Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-20 °C
Power (Watts)	150 W
Size / Dimension Height	1.5 in
Size / Dimension Length	7.01 in
Size / Dimension Width	3.82 in
Type	Enclosed
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	85 VAC
Voltage - Isolation	3 kV
Voltage - Output 1	12 V

Part	Voltage - Isolation	Number of Outputs	Voltage - Output 1	Current - Output 1	Size / Dimension Width	Size / Dimension Length	Size / Dimension Height	Operating Temperature (Max)	Operating Temperature (Min)	Applications	Power (Watts)	Type	Approval Agency	Efficiency	Features	Mounting Type	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Standard Number
Delta Electronics PMC-12V050W1AA	3 kV	1	12 V	4.17 A	3.82 in	5.04 in	1.5 in	70 °C	-20 °C	ITE (Commercial)	50 W	Enclosed	CB CCC CE cURus TUVgs	83 %	Adjustable Output DC Input Capable Universal Input	Chassis Mount	85 VAC	264 V
Delta Electronics PMC-12V060W1NA	3 kV	1	12 V	5 A	3.82 in	5.04 in	1.5 in	70 °C	-20 °C	ITE (Commercial)	60 W	Conformal Coated Enclosed	CB Scheme CE EAC EN NEC Class 2 SIQ UL	86 %	Adjustable Output DC Input Capable Universal Input	Chassis Mount	85 VAC	264 V	50581 55024 55032 60950-1 61000-3-2 61000-3-3
Delta Electronics PMC-12V100W1AA	3 kV	1	12 V	8.33 A	3.82 in	6.22 in	1.5 in	70 °C	-20 °C	ITE (Commercial)	100 W	Enclosed	CB CCC CE cURus TUVgs	84 %	Adjustable Output DC Input Capable Universal Input	Chassis Mount	85 VAC	264 V
Delta Electronics PMC-12V150W1BL	3 kV	1	12 V	12.5 A	3.82 in	7.01 in	1.5 in	70 °C	-10 °C	ITE (Commercial)	150 W	Enclosed	CB CCC CE cURus TUVgs	88 %	Adjustable Output DC Input Capable PFC Universal Input	Chassis Mount	85 VAC	264 V
Delta Electronics PMC-12V150W1BA	3 kV	1	12 V	12.5 A	3.82 in	7.01 in	1.5 in	70 °C	-20 °C	ITE (Commercial)	150 W	Enclosed	CB CCC CE cURus TUV	88 %	Adjustable Output DC Input Capable PFC Universal Input	Chassis Mount	85 VAC	264 V
