EFR32BG12P232F1024GM68-CR
ActiveSilicon Labs
IC RF TXRX+MCU 802.15.4 68QFN
Deep-Dive with AI
Search across all available documentation for this part.
EFR32BG12P232F1024GM68-CR
ActiveSilicon Labs
IC RF TXRX+MCU 802.15.4 68QFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EFR32BG12P232F1024GM68-CR |
|---|---|
| Current - Receiving [Max] | 10 mA |
| Current - Receiving [Min] | 8.4 mA |
| Current - Transmitting [Max] | 35.3 mA |
| Current - Transmitting [Min] | 8.5 mA |
| Data Rate (Max) | 2 Mbps |
| Frequency | 2.4 GHz |
| GPIO | 31 |
| Memory Size | 128 kB, 1 MB |
| Modulation | MSK, 4GFSK, OQPSK, DSSS, OOK, 2GFSK, ASK, GFSK, GMSK, 2FSK, 4FSK, DBPSK, BPSK |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

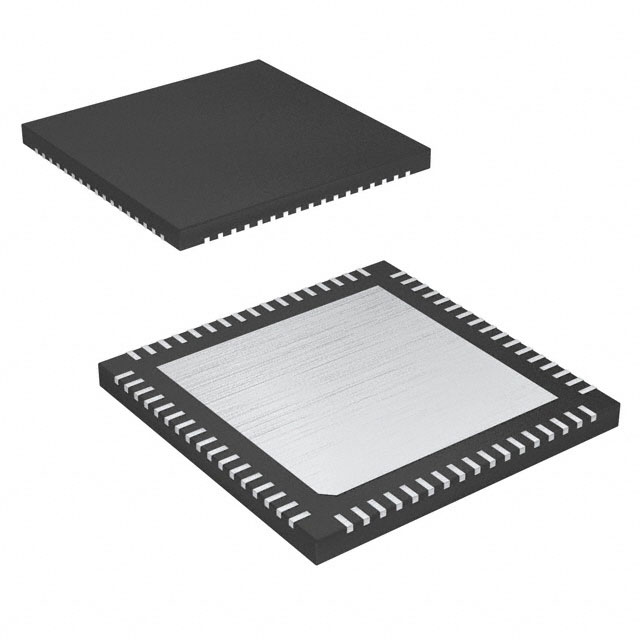

| Package / Case | 68-VFQFN Exposed Pad |
| Power - Output | 10 dBm |
| Protocol | Bluetooth v5.0, Wireless M-Bus |
| RF Family/Standard | Bluetooth, 802.15.4 |
| Sensitivity | -126.2 dBm |
| Serial Interfaces | SPI, I2C, I2S, UART |
| Supplier Device Package | 68-QFN (8x8) |
| Type | TxRx + MCU |
| Voltage - Supply [Max] | 3.8 V |
| Voltage - Supply [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 10.57 | |
| 10 | $ 9.18 | |||
| 25 | $ 8.70 | |||
| 100 | $ 8.04 | |||
| 250 | $ 7.64 | |||
| 500 | $ 7.36 | |||
| 1000 | $ 7.27 | |||
| Digi-Reel® | 1 | $ 10.57 | ||
| 10 | $ 9.18 | |||
| 25 | $ 8.70 | |||
| 100 | $ 8.04 | |||
| 250 | $ 7.64 | |||
| 500 | $ 7.36 | |||
| 1000 | $ 7.27 | |||
| Tape & Reel (TR) | 2500 | $ 5.94 | ||
Description
General part information
EFR32BG12P232 Series
IC RF TxRx + MCU 802.15.4, Bluetooth Bluetooth v5.0, Wireless M-Bus 2.4GHz 68-VFQFN Exposed Pad
Documents
Technical documentation and resources
