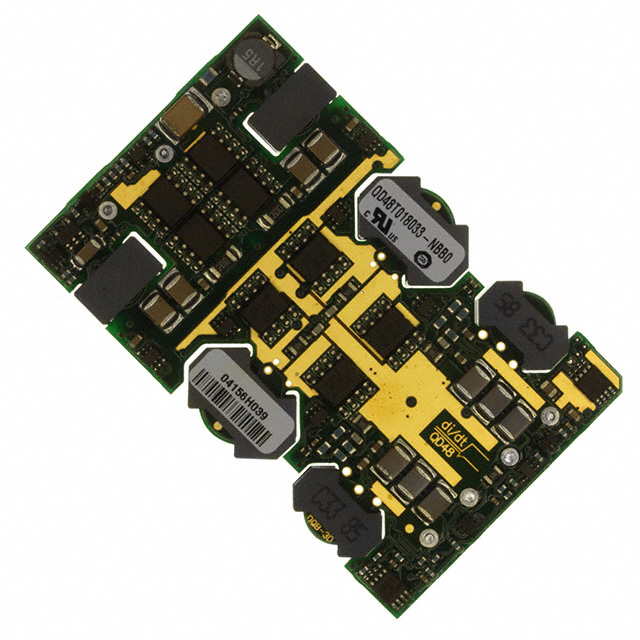

QD48T018033-NBB0

Active

Bel Power Solutions

DC DC CONVERTER 1.8V 3.3V 49W

Deep-Dive with AI

Search across all available documentation for this part.

QD48T018033-NBB0

Active

Bel Power Solutions

DC DC CONVERTER 1.8V 3.3V 49W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

QD48T018033 Series

Isolated Module DC DC Converter 2 Output 1.8V 3.3V 15A, 15A 36V - 75V Input

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	QD48T018033-NBB0	QD48T018033 Series

Applications	ITE (Commercial)	ITE (Commercial)
Control Features	-	Active Low, Enable, Active High
Current - Output (Max)	15 A	15 A
Current - Output (Max)	15 A	15 A
Efficiency	87.5 %	87 - 87.5 %
Features	-	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole	Through Hole
Number of Outputs	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	7-DIP Module, 1/4 Brick	7-DIP Module, 1/4 Brick
Power (Watts)	49 W	49 - 77 W
Size / Dimension [x]	2.3 in	2.3 in
Size / Dimension [x]	58.4 mm	58.4 mm
Size / Dimension [y]	36.8 mm	36.8 mm
Size / Dimension [y]	1.45 in	1.45 in
Size / Dimension [z]	0.34 in	0.26 - 0.4 in
Size / Dimension [z]	8.6 mm	6.6 - 10.2 mm
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	75 V	75 V
Voltage - Input (Min) [Min]	36 V	36 V
Voltage - Isolation	2000 V	2000 V
Voltage - Output 1	1.8 V	1.8 V
Voltage - Output 2	3.3 V	3.3 V

QD48T018033 Series

DC DC CONVERTER 1.8V 3.3V 77W

Part	Features	Voltage - Input (Min) [Min]	Voltage - Output 2	Power (Watts)	Control Features	Mounting Type	Voltage - Isolation	Current - Output (Max)	Current - Output (Max)	Type	Voltage - Input (Max) [Max]	Voltage - Output 1	Applications	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Number of Outputs
Bel Power Solutions QD48T018033-NBB0G	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	36 V	3.3 V	77 W	Active Low, Enable	Through Hole	2000 V	15 A	15 A	Isolated Module	75 V	1.8 V	ITE (Commercial)	87 %	85 °C	-40 °C	7-DIP Module, 1/4 Brick	36.8 mm	0.34 in	58.4 mm	2.3 in	8.5 mm	1.45 in	2
Bel Power Solutions QD48T018033-PAA0G	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	36 V	3.3 V	77 W	Active High, Enable	Through Hole	2000 V	15 A	15 A	Isolated Module	75 V	1.8 V	ITE (Commercial)	87 %	85 °C	-40 °C	7-DIP Module, 1/4 Brick	36.8 mm	0.3 "	58.4 mm	2.3 in	7.7 mm	1.45 in	2
Bel Power Solutions QD48T018033-NDB0G	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	36 V	3.3 V	77 W	Active Low, Enable	Through Hole	2000 V	15 A	15 A	Isolated Module	75 V	1.8 V	ITE (Commercial)	87 %	85 °C	-40 °C	7-DIP Module, 1/4 Brick	36.8 mm	0.4 "	58.4 mm	2.3 in	10.2 mm	1.45 in	2
Bel Power Solutions QD48T018033-NBB0		36 V	3.3 V	49 W		Through Hole	2000 V	15 A	15 A	Isolated Module	75 V	1.8 V	ITE (Commercial)	87.5 %	85 °C	-40 °C	7-DIP Module, 1/4 Brick	36.8 mm	0.34 in	58.4 mm	2.3 in	8.6 mm	1.45 in	2
Bel Power Solutions QD48T018033-NBA0	OTP, OVP, Remote On/Off, UVLO	36 V	3.3 V	77 W	Active Low, Enable	Through Hole	2000 V	15 A	15 A	Isolated Module	75 V	1.8 V	ITE (Commercial)	87 %	85 °C	-40 °C	7-DIP Module, 1/4 Brick	36.8 mm	0.26 "	58.4 mm	2.3 in	6.6 mm	1.45 in	2
