UES1306E3
ActiveMicrochip Technology

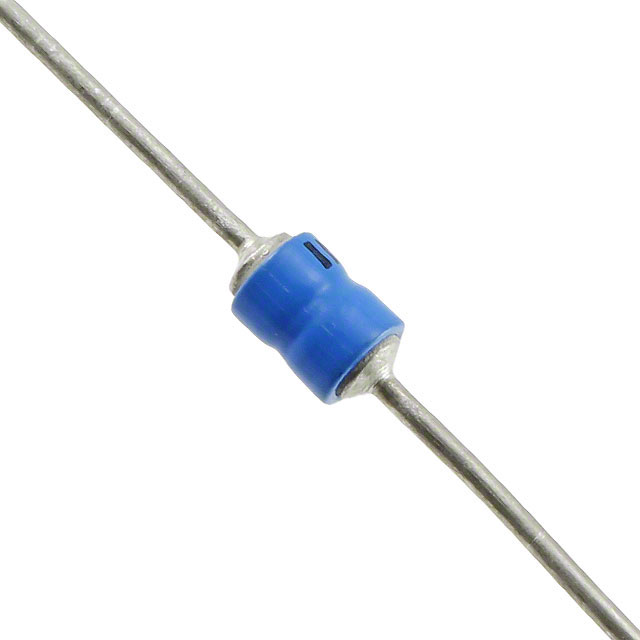

RECTIFIER DIODE SWITCHING 2-PIN 5.0A, 400V, 50NS B-BODY BAG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsUES1304-UES1306
UES1306E3
ActiveMicrochip Technology
RECTIFIER DIODE SWITCHING 2-PIN 5.0A, 400V, 50NS B-BODY BAG
Deep-Dive with AI
DocumentsUES1304-UES1306
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | UES1306E3 | UES1306-Rectifier Series |
|---|---|---|
| - | - | |
| Current - Average Rectified (Io) | 3 A | 3 - 5 A |
| Current - Reverse Leakage @ Vr | 20 µA | 20 µA |
| Mounting Type | Through Hole | Through Hole |
| Operating Temperature - Junction [Max] | 150 °C | 150 °C |
| Operating Temperature - Junction [Min] | -55 °C | -55 °C |
| Package / Case | Axial, B | Axial, B |
| Reverse Recovery Time (trr) | 50 ns | 50 ns |
| Speed | 200 mA, 500 ns | 200 - 500 mA |
| Supplier Device Package | B, Axial | B, Axial |
| Technology | Standard | Standard, Reverse Polarity |
| Voltage - DC Reverse (Vr) (Max) [Max] | 400 V | 400 V |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V | 1 - 1.25 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 21.85 | |
| Microchip Direct | N/A | 1 | $ 23.52 | |
| 100 | $ 21.85 | |||
| 500 | $ 21.01 | |||
| 1000 | $ 19.82 | |||
UES1306-Rectifier Series
Rectifier Diode Switching 2-Pin 5.0A, 400V, 50ns B-Body Bag
| Part | Current - Reverse Leakage @ Vr | Voltage - Forward (Vf) (Max) @ If | Operating Temperature - Junction [Max] | Operating Temperature - Junction [Min] | Reverse Recovery Time (trr) | Speed | Technology | Package / Case | Current - Average Rectified (Io) | Voltage - DC Reverse (Vr) (Max) [Max] | Supplier Device Package | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology UES1306HR2/TR | ||||||||||||
Microchip Technology UES1306/TR | 20 µA | 1.25 V | 150 °C | -55 °C | 50 ns | 200 mA, 500 ns | Reverse Polarity, Standard | Axial, B | 3 A | 400 V | B, Axial | Through Hole |
Microchip Technology UES1306E3 | 20 µA | 1.25 V | 150 °C | -55 °C | 50 ns | 200 mA, 500 ns | Standard | Axial, B | 3 A | 400 V | B, Axial | Through Hole |
Microchip Technology UES1306E3/TR | 20 µA | 1.25 V | 150 °C | -55 °C | 50 ns | 200 mA, 500 ns | Reverse Polarity, Standard | Axial, B | 3 A | 400 V | B, Axial | Through Hole |
Microchip Technology UES1306/TR | ||||||||||||
Microchip Technology UES1306HR2/TR | 20 µA | 1 V | 50 ns | 200 mA, 500 ns | Standard | Axial, B | 5 A | 400 V | B, Axial | Through Hole | ||
Microchip Technology UES1306 |
Description
General part information
UES1306-Rectifier Series
The UES1304 series is specifically designed for operation in power switching circuits operating at frequencys of at least 20 KHz.
