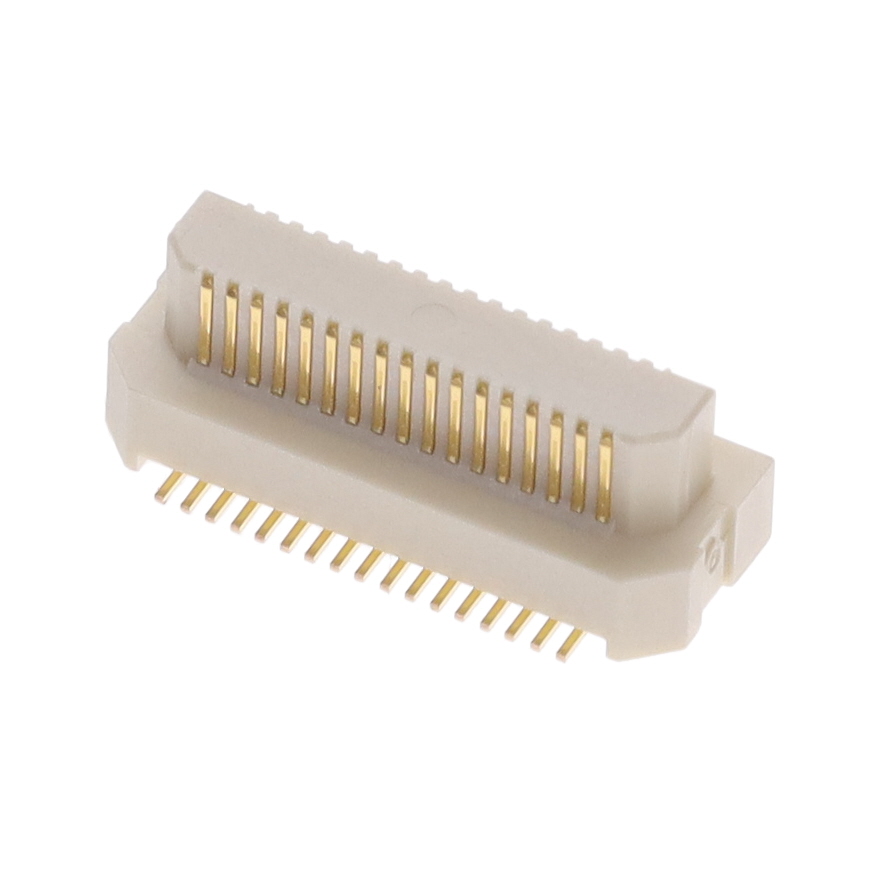

AXK6S34547YG
ActivePanasonic Electric Works
CONN HDR 34POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
AXK6S34547YG
ActivePanasonic Electric Works
CONN HDR 34POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AXK6S34547YG |
|---|---|
| Connector Type | Header, Outer Shroud Contacts |
| Contact Finish | Gold |
| Height Above Board | 0.169 in |
| Height Above Board | 4.3 mm |
| Mated Stacking Heights | 5.5 mm, 8 mm, 5 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 34 |
| Number of Rows | 2 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.16 | |
| 10 | $ 2.87 | |||
| 25 | $ 2.71 | |||
| 50 | $ 2.65 | |||
| 100 | $ 2.52 | |||
| 250 | $ 2.21 | |||
| 500 | $ 2.15 | |||
| Digi-Reel® | 1 | $ 3.16 | ||
| 10 | $ 2.87 | |||
| 25 | $ 2.71 | |||
| 50 | $ 2.65 | |||
| 100 | $ 2.52 | |||
| 250 | $ 2.21 | |||
| 500 | $ 2.15 | |||
| Tape & Reel (TR) | 1000 | $ 1.83 | ||
| 2000 | $ 1.77 | |||
| 3000 | $ 1.70 | |||
| 5000 | $ 1.64 | |||
Description
General part information
AXK6S34547 Series
34 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
