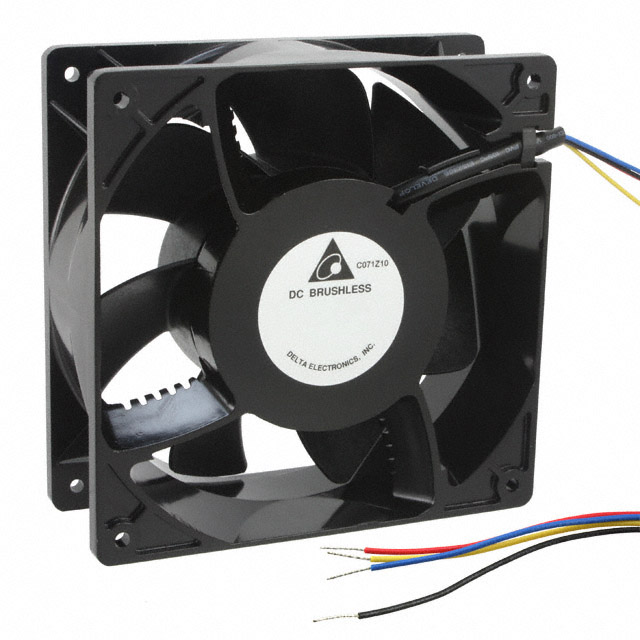

TFA1448CG

Obsolete

Delta Electronics

FAN AXIAL 139.7X50.8MM 48VDC

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN AXIAL 139.7X50.8MM 48VDC

Technical Specifications

Parameters and characteristics for this part

Specification	TFA1448CG

Air Flow	7.98 m³/min
Air Flow	285 CFM
Bearing Type	Ball
Current Rating (Amps)	0.72 A
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	62.5 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	34.56 W
RPM	4200 RPM
Static Pressure	1.02 in H2O
Static Pressure	255 Pa
Termination	4 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	56 VDC
Voltage Range [Min]	30 VDC
Weight	725.7 g
Weight	1.6 lbs
Width [y]	2 "

FAN AXIAL 139.7X50.8MM 48VDC

Part	Bearing Type	Fan Type	Current Rating (Amps)	Static Pressure	Static Pressure	Features	Noise	Air Flow	Air Flow	Material - Frame	RPM	Termination	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Material - Blade	Weight	Weight	Width [y]	Voltage - Rated [custom]	Lifetime @ Temp.	Voltage Range [Min]	Voltage Range [Max]	Power (Watts)
Delta Electronics TFA1448CG	Ball	Tubeaxial	0.72 A	1.02 in H2O	255 Pa	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	62.5 dB	7.98 m³/min	285 CFM	Plastic	4200 RPM	4 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	Plastic	725.7 g	1.6 lbs	2 "	48 VDC	70000 Hrs	30 VDC	56 VDC	34.56 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 48VDC Square - 139.7mm L x 139.7mm H Ball 285.0 CFM (7.98m³/min) 4 Wire Leads
