530BUE 0081000

Active

Belden Inc.

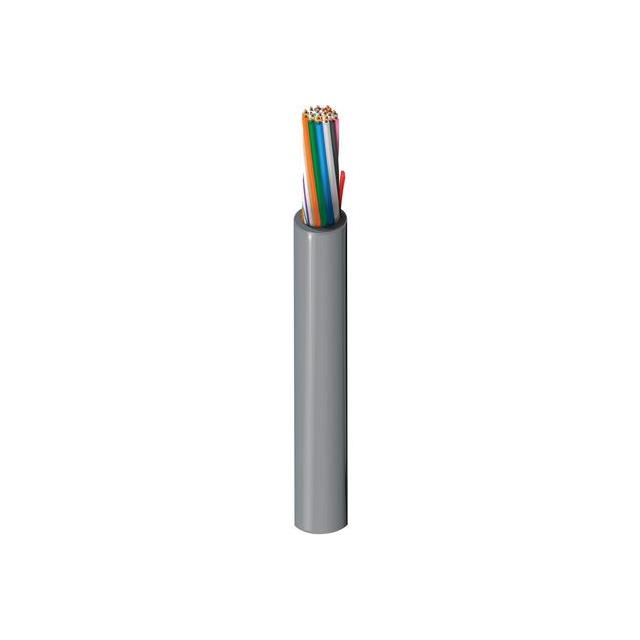

CABLE 20COND 18AWG GRAY

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 20COND 18AWG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	530BUE 0081000

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	26 AWG
Conductor Strand [custom]	7
Features	Rip Cord
Jacket (Insulation) Diameter [diameter]	0.4 "
Jacket (Insulation) Diameter [diameter]	10.16 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC), Riser
Jacket (Insulation) Thickness	0.025 in
Jacket (Insulation) Thickness	0.635 mm
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Number of Conductors	20
Ratings	UL Style CMR
Usage	Sound, Security, Alarm
Voltage	300 V
Wire Gauge	18 AWG

Part	Jacket Color	Ratings	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Usage	Voltage	Jacket (Insulation) Material	Conductor Insulation	Length	Length	Features	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors
Belden Inc. 530BUE 0081000	Gray	UL Style CMR	18 AWG	0.025 in	0.635 mm	Copper Bare	0.4 "	10.16 mm	Multi-Conductor	Alarm Security Sound	300 V	Poly-Vinyl Chloride (PVC) Riser	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	Rip Cord	26 AWG	7	20

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 2.33

General part information

20 Conductor Multi-Conductor Cable Gray 18 AWG 1000.0' (304.8m)
