FWG.2B.302.CLA

Active

LEMO

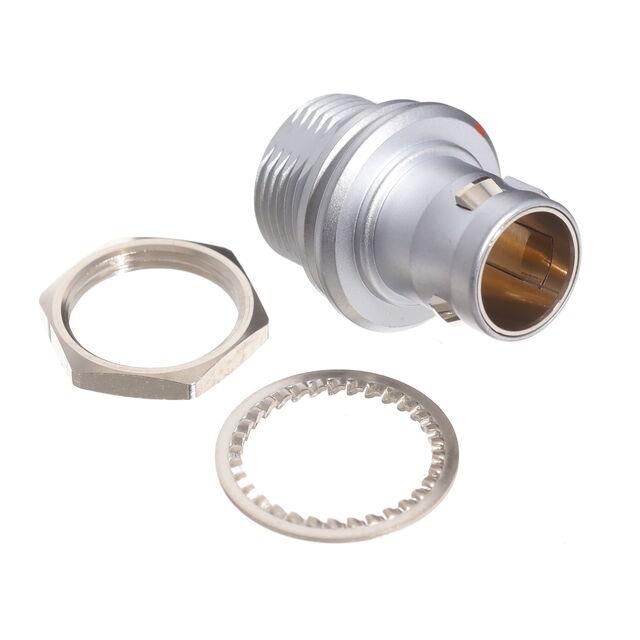

CONN PLUG MALE 2P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FWG.2B.302.CLA

Active

LEMO

CONN PLUG MALE 2P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 98.37
		10	$ 90.27
		25	$ 86.79
		50	$ 83.90
		100	$ 79.27

Description

General part information

FWG.2B Series

2 Position Circular Connector Plug, Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FWG.2B.302.CLA	FWG.2B Series

Backshell Material, Plating	Brass, Chrome	Brass, Chrome
Color	Silver	Silver
Connector Type	Plug, Male Pins	Plug, Male Pins, Insert Shell
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1 µm	1 µm
Contact Finish Thickness - Mating	39.4 µin	39.4 µin
Contact Material	Brass	Brass
Current Rating (Amps)	25 A	5 - 25 A
Fastening Type	Push-Pull	Push-Pull, Detent Lock
Housing Color	-	Silver
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Mounting Type	-	Through Hole, Panel Mount
Note	-	Contacts Not Included; Insert Not Included
Number of Positions	2	2 - 14
Number of Positions	-	16
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	302	302 - 316
Shielding	Shielded	Shielded
Termination	-	Solder, Crimp

FWG.2B Series

CONN PLUG MALE 8P GOLD SLDR CUP

Part	Number of Positions	Shielding	Shell Finish	Fastening Type	Contact Finish - Mating	Backshell Material, Plating	Current Rating (Amps)	Shell Size - Insert	Connector Type	Shell Material	Mounting Feature	Ingress Protection	Orientation	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Primary Material	Material Flammability Rating	Insert Material	Color	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Termination	Mounting Type	Housing Color	Note
LEMO FWG.2B.308.CLA	8	Shielded	Chrome	Push-Pull	Gold	Brass, Chrome	10 A	308	Male Pins, Plug	Brass	Bulkhead - Rear Side Nut	IP50	G	1 µm	39.4 µin	Brass	Metal	UL94 V-0	Polyetheretherketone (PEEK)	Silver	-55 °C	250 °C
LEMO FWG.2B.316.CLA		Shielded	Chrome	Push-Pull	Gold	Brass, Chrome	6 A	316	Male Pins, Plug	Brass	Bulkhead - Rear Side Nut	IP50	G	1 µm	39.4 µin	Brass	Metal	UL94 V-0	Polyetheretherketone (PEEK)	Silver	-55 °C	250 °C	16
LEMO FWG.2B.704.CJA		Shielded	Chrome	Push-Pull	Gold	Brass, Chrome	5 A		Male Pins, Plug	Brass	Bulkhead - Rear Side Nut	IP50	G	1 µm	39.4 µin	Brass	Metal	UL94 V-0	Polyetheretherketone (PEEK)	Silver	-55 °C	250 °C
LEMO FWG.2B.312.CLA	12	Shielded	Chrome	Push-Pull	Gold	Brass, Chrome	7 A	312	Male Pins, Plug	Brass	Bulkhead - Rear Side Nut	IP50	G	1 µm	39.4 µin	Brass	Metal	UL94 V-0	Polyetheretherketone (PEEK)	Silver	-55 °C	250 °C
LEMO FWG.2B.314.CLV	14	Shielded	Chrome	Push-Pull	Gold	Brass, Chrome	6.5 A	314	Male Pins, Plug	Brass	Bulkhead - Rear Side Nut	IP50	G	1 µm	39.4 µin	Brass	Metal	UL94 V-0	Polyetheretherketone (PEEK)	Silver	-55 °C	250 °C		Solder	Panel Mount, Through Hole
LEMO FWG.2B.308.CYC	8	Shielded	Chrome	Push-Pull	Gold	Brass, Chrome	10 A	308	Male Pins, Plug	Brass	Bulkhead - Rear Side Nut	IP50	G	1 µm	39.4 µin	Brass	Metal	UL94 V-0	Polyetheretherketone (PEEK)	Silver	-55 °C	250 °C		Crimp
LEMO FWG.2B.305.CLA		Shielded	Chrome	Push-Pull	Gold	Brass, Chrome	14 A	305	Male Pins, Plug	Brass	Bulkhead - Rear Side Nut	IP50	G	1 µm	39.4 µin	Brass	Metal	UL94 V-0	Polyetheretherketone (PEEK)	Silver	-55 °C	250 °C
LEMO FWG.2B.302.CLA	2	Shielded	Chrome	Push-Pull	Gold	Brass, Chrome	25 A	302	Male Pins, Plug	Brass	Bulkhead - Rear Side Nut	IP50	G	1 µm	39.4 µin	Brass	Metal	UL94 V-0	Polyetheretherketone (PEEK)	Silver	-55 °C	250 °C
LEMO FWG.2B.304.CLA	4	Shielded	Chrome	Push-Pull	Gold	Brass, Chrome	15 A	304	Male Pins, Plug	Brass	Bulkhead - Rear Side Nut	IP50	G	1 µm	39.4 µin	Brass	Metal	UL94 V-0	Polyetheretherketone (PEEK)	Silver	-55 °C	250 °C
LEMO FWG.2B.110.CZZ		Shielded	Chrome	Detent Lock, Push-Pull					Insert Shell	Brass	Bulkhead - Rear Side Nut	IP50	G								-55 °C	250 °C				Silver	Contacts Not Included; Insert Not Included
