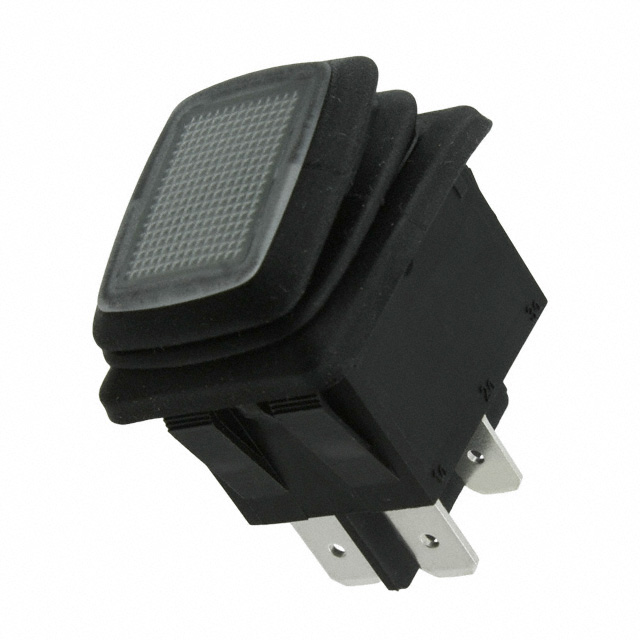

GRB285A8L101GR4
ActiveCW Industries
SWITCH ROCKER DPST 20A 125V
Deep-Dive with AI
Search across all available documentation for this part.
GRB285A8L101GR4
ActiveCW Industries
SWITCH ROCKER DPST 20A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GRB285A8L101GR4 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Flat - Illuminated |
| Approval Agency | ENEC, cULus |
| Circuit | DPST |
| Color - Actuator/Cap | Clear |
| Current Rating (Amps) | 20 A |
| Illumination Type, Color | Green/Red, LED |
| Ingress Protection | IP56 - Dust Protected, Water Resistant |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [x] | 30.2 mm |
| Panel Cutout Dimensions [y] | 22.2 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.84 | |
| 10 | $ 6.77 | |||
| 25 | $ 6.38 | |||
| 50 | $ 6.10 | |||
| 100 | $ 5.84 | |||
| 250 | $ 5.50 | |||
| 500 | $ 5.26 | |||
| 1000 | $ 5.03 | |||
Description
General part information
GRB285A Series
Rocker Switch DPST 20A (AC) 125 V Panel Mount, Snap-In
