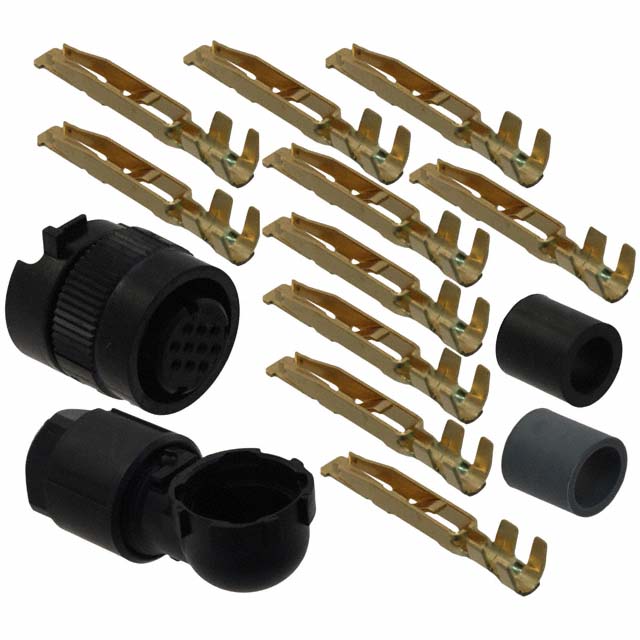

JN1FS10SLK

Active

JAE Electronics

CONN PLG HSG FMAL 10PS INLINE RA

Search across all available documentation for this part.

Active

JAE Electronics

CONN PLG HSG FMAL 10PS INLINE RA

Technical Specifications

Parameters and characteristics for this part

Specification	JN1FS10SLK

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	22
Contact Type	Crimp
Fastening Type	Push-Twist
Features	Coupling Nut, Backshell, Rotatable
Housing Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Synthetic Resin
Mounting Type	Free Hanging (In-Line), Right Angle
Note	Contacts Not Included
Number of Positions	10
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-20 C
Orientation	N
Shell Material	Synthetic Resin
Shell Size - Insert	S
Shielding	Unshielded
Type	For Female Sockets

Part	Shell Material	Number of Positions	Contact Size	Fastening Type	Connector Type	Contact Shape	Housing Color	Orientation	Ingress Protection	Features	Insert Material	Note	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Type	Shielding	Mounting Type	Contact Type
JAE Electronics JN1FS10SL2	Synthetic Resin	10	22	Push-Twist	Plug Housing	Circular	Black	N	IP67 - Dust Tight Waterproof	Backshell Coupling Nut Rotatable	Synthetic Resin	Contacts Not Included	S	-20 C	125 °C	For Female Sockets	Unshielded	Free Hanging (In-Line) Right Angle	Crimp
JAE Electronics JN1FS10SLK	Synthetic Resin	10	22	Push-Twist	Plug Housing	Circular	Black	N	IP67 - Dust Tight Waterproof	Backshell Coupling Nut Rotatable	Synthetic Resin	Contacts Not Included	S	-20 C	125 °C	For Female Sockets	Unshielded	Free Hanging (In-Line) Right Angle	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	17	$ 24.38

General part information

10 Position Circular Connector Plug Housing Free Hanging (In-Line), Right Angle Backshell, Coupling Nut, Rotatable
