SDR2207-330K

Obsolete

Bourns Inc.

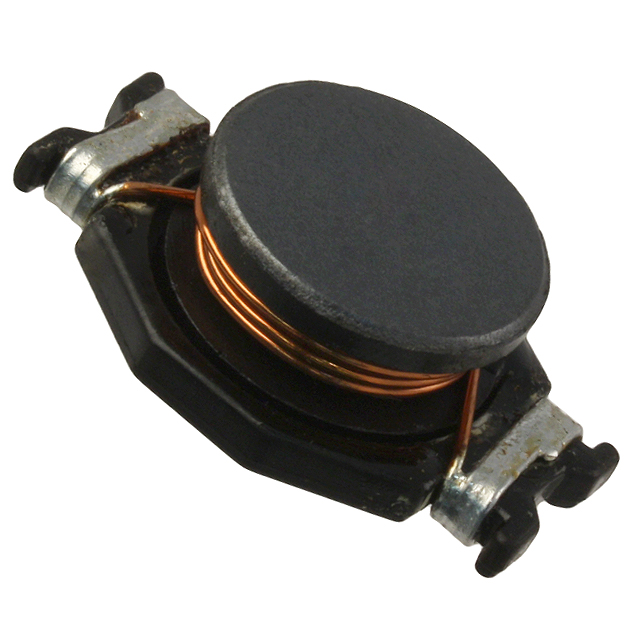

FIXED IND 33UH 3.4A 58.4MOHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SDR2207-330K

Obsolete

Bourns Inc.

FIXED IND 33UH 3.4A 58.4MOHM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SDR2207-330K

Current - Saturation (Isat)	5.5 A
Current Rating (Amps)	3.4 A
DC Resistance (DCR)	58.4 mOhm
Frequency - Self Resonant	11 MHz
Height - Seated (Max) [Max]	0.307 in
Height - Seated (Max) [Max]	7.8 mm
Inductance	33 µH
Inductance Frequency - Test	100 kHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Nonstandard
Q @ Freq	27, 3 MHz
Shielding	Unshielded
Size / Dimension [x]	0.866 in
Size / Dimension [x]	22 mm
Size / Dimension [y]	15 mm
Size / Dimension [y]	0.591 in
Tolerance	10 %
Type	Wirewound, Drum Core

SDR2207 Series

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Current Rating (Amps)	DC Resistance (DCR) [Max]	Mounting Type	Frequency - Self Resonant	Operating Temperature [Max]	Operating Temperature [Min]	Inductance	Shielding	Q @ Freq	Inductance Frequency - Test	Material - Core	Type	Tolerance	Current - Saturation (Isat)	DC Resistance (DCR)
Bourns Inc. SDR2207-4R7ML	15 mm	0.866 in	22 mm	0.591 in	0.307 in	7.8 mm	Nonstandard	8.5 A	8.8 mOhm	Surface Mount	33 MHz	125 °C	-40 °C	4.7 ÁH	Unshielded	3 MHz 38	100 kHz	Ferrite	Drum Core Wirewound	20 %	15 A
Bourns Inc. SDR2207-330K	15 mm	0.866 in	22 mm	0.591 in	0.307 in	7.8 mm	Nonstandard	3.4 A		Surface Mount	11 MHz	125 °C	-40 °C	33 µH	Unshielded	3 MHz 27	100 kHz	Ferrite	Drum Core Wirewound	10 %	5.5 A	58.4 mOhm
Bourns Inc. SDR2207-100M	15 mm	0.866 in	22 mm	0.591 in	0.307 in	7.8 mm	Nonstandard	6.5 A	17.2 mOhm	Surface Mount	20 MHz	125 °C	-40 °C	10 µH	Unshielded	5 MHz 53	100 kHz	Ferrite	Drum Core Wirewound	20 %	10 A
Bourns Inc. SDR2207-2R7ML	15 mm	0.866 in	22 mm	0.591 in	0.307 in	7.8 mm	Nonstandard	10 A		Surface Mount	51 MHz	125 °C	-40 °C	2.7 µH	Unshielded	3 MHz 38	100 kHz	Ferrite	Drum Core Wirewound	20 %	20 A
Bourns Inc. SDR2207-1R2ML	15 mm	0.866 in	22 mm	0.591 in	0.307 in	7.8 mm	Nonstandard	15 A		Surface Mount		125 °C	-40 °C	1.2 µH	Unshielded	3 MHz 30	100 kHz	Ferrite	Drum Core Wirewound	20 %	30 A
Bourns Inc. SDR2207-220YL	15 mm	0.866 in	22 mm	0.591 in	0.307 in	7.8 mm	Nonstandard	4 A	39.4 mOhm	Surface Mount	14 MHz	125 °C	-40 °C	22 µH	Unshielded	3 MHz 27	100 kHz	Ferrite	Drum Core Wirewound	15 %	6.5 A
Bourns Inc. SDR2207-8R2ML	15 mm	0.866 in	22 mm	0.591 in	0.307 in	7.8 mm	Nonstandard	7 A		Surface Mount	25 MHz	125 °C	-40 °C	8.2 µH	Unshielded	3 MHz 35	100 kHz	Ferrite	Drum Core Wirewound	20 %	11 A	15.5 mOhm
Bourns Inc. SDR2207-1R8ML	15 mm	0.866 in	22 mm	0.591 in	0.307 in	7.8 mm	Nonstandard	13 A	4.5 mOhm	Surface Mount	51 MHz	125 °C	-40 °C	1.8 µH	Unshielded	31	100 kHz	Ferrite	Drum Core Wirewound	20 %
Bourns Inc. SDR2207-2R2ML	15 mm	0.866 in	22 mm	0.591 in	0.307 in	7.8 mm	Nonstandard	13 A		Surface Mount	51 MHz	125 °C	-40 °C	2.2 µH	Unshielded	3 MHz 35	100 kHz	Ferrite	Drum Core Wirewound	20 %	20 A	7.5 mOhm
Bourns Inc. SDR2207-3R3ML	15 mm	0.866 in	22 mm	0.591 in	0.307 in	7.8 mm	Nonstandard		7.8 mOhm	Surface Mount	39 MHz	125 °C	-40 °C	3.3 µH	Unshielded	3 MHz 38	100 kHz	Ferrite	Drum Core Wirewound	20 %	17 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SDR2207 Series

33 µH Unshielded Drum Core, Wirewound Inductor 3.4 A 58.4mOhm Max Nonstandard
