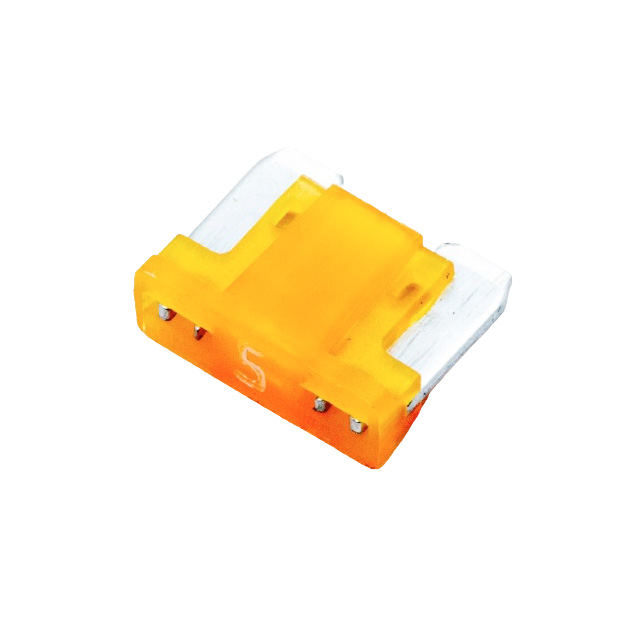

ANS-5A

Active

OptiFuse

FUSE AUTOMOTIVE 5A 32VDC BLADE

Search across all available documentation for this part.

Active

OptiFuse

FUSE AUTOMOTIVE 5A 32VDC BLADE

Technical Specifications

Parameters and characteristics for this part

Specification	ANS-5A

Approval Agency	ISO, SAE
Breaking Capacity @ Rated Voltage	1 kA
Color	Tan
Current Rating (Amps)	5 A
Fuse Type	Automotive
Mounting Type	Requires Holder
Package / Case	Blade, Miniature (Low Profile)
Response Time	Fast Blow
Size / Dimension [x]	0.433 in
Size / Dimension [x]	11 mm
Size / Dimension [y]	3.91 mm
Size / Dimension [y]	0.154 in
Size / Dimension [z]	8.75 mm
Size / Dimension [z]	0.344 in
Voltage Rating - DC	32 V

FUSE AUTOMOTIVE 5A 32VDC BLADE

Part	Response Time	Voltage Rating - DC	Package / Case	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Breaking Capacity @ Rated Voltage	Fuse Type	Current Rating (Amps)	Approval Agency	Mounting Type	Color
OptiFuse ANS-5A	Fast Blow	32 V	Blade, Miniature (Low Profile)	8.75 mm	3.91 mm	0.344 in	0.433 in	11 mm	0.154 in	1 kA	Automotive	5 A	ISO, SAE	Requires Holder	Tan

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 A AC 32 V DC Fuse Automotive Requires Holder Blade, Miniature (Low Profile)
