C01630H00611010

Active

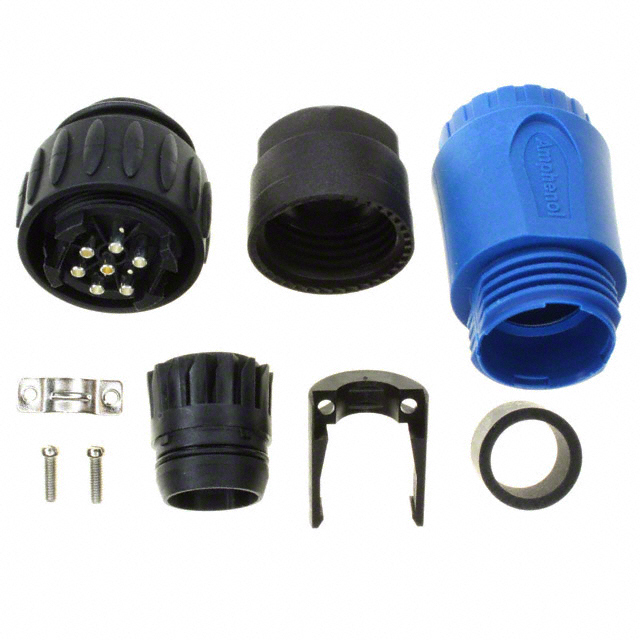

CONN PLUG MALE 7POS SILVER SLDR

Active

CONN PLUG MALE 7POS SILVER SLDR

Description

General part information

7 Position Circular Connector Plug, Male Pins Solder

Parameters and characteristics for this part

Specification	C01630H00611010

Connector Type	Male Pins, Plug
Contact Finish - Mating	Silver
Current Rating	12 A
Fastening Type	Threaded
Features	Strain Relief, Cable Clamp
Ingress Protection Description	Dust Tight, Water Resistant, Waterproof
Ingress Protection IP Rating	IP67, IP65
Mounting Type	Free Hanging (In-Line)
Number of Positions	7
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Polyamide (PA)
Termination	Solder
Voltage Rating	250 V

Part	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish - Mating	Voltage Rating	Number of Positions	Features	Mounting Type	Ingress Protection Description	Ingress Protection IP Rating	Fastening Type	Termination	Orientation	Shell Material	Current Rating	Primary Material	Connector Type	Color
Amphenol Tuchel Industrial C01630H00620010	125 °C	-40 °C	Gold	250 V	7	Cable Clamp	Free Hanging (In-Line)	Dust Tight Water Resistant Waterproof	IP65 IP67	Threaded	Solder	Keyed	Nylon Polyamide (PA)	12 A	Plastic	Male Pins Plug
Amphenol Tuchel Industrial C01630H00611012	125 °C	-40 °C	Silver	250 V	7	Cable Clamp Strain Relief	Free Hanging (In-Line)	Dust Tight Water Resistant Waterproof	IP65 IP67	Threaded	Solder	Keyed	Nylon Polyamide (PA)	12 A	Plastic	Male Pins Plug	Black
Amphenol Tuchel Industrial C01630H00610012	125 °C	-40 °C	Silver	250 V	7	Cable Clamp	Free Hanging (In-Line)	Dust Tight Water Resistant Waterproof	IP65 IP67	Threaded	Solder	Keyed	Nylon Polyamide (PA)	12 A	Plastic	Male Pins Plug
Amphenol Tuchel Industrial C01630H00611010	125 °C	-40 °C	Silver	250 V	7	Cable Clamp Strain Relief	Free Hanging (In-Line)	Dust Tight Water Resistant Waterproof	IP65 IP67	Threaded	Solder	Keyed	Nylon Polyamide (PA)	12 A	Plastic	Male Pins Plug
Amphenol Tuchel Industrial C01630H00610010	125 °C	-40 °C	Silver	250 V	7	Cable Clamp	Free Hanging (In-Line)	Dust Tight Water Resistant Waterproof	IP65 IP67	Threaded	Solder	Keyed	Nylon Polyamide (PA)	12 A	Plastic	Male Pins Plug
